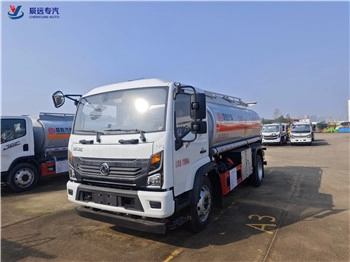

Dongfeng brand 5000L/1200Gals small fuel tank truck supplier in china

  • 1.Production name: Small fuel tanker truck
  • 2. Production model: CLW5061GJY3
  • 3. Overall dimensions (mm): 5990×1960×2400
  • 4. Wheel base (mm): 3300
  • 5. type of fuel: diesel
  • 6. Issuance standard: Euro III
  • 7. Volume: 1200Gallons or 5000L

Dongfeng brand 5000L/1200Gals small fuel tank truck supplier in china


I. Vehicle Parameter

1、 model、name

CLW5061GJY3 refueling truck

2、 brand name

CLW

3、manufacturer

Hubei  Chengli  Special  Automobile  Co.,Ltd (IN CHINA)

4、 Overall dimension

5990×1960×2400 mm

5、curb weight

3365 Kg

6、 tank  volume

1200 Gals

7、Tank material

carbon steel Q235

8、 cab seats

3

9、Max speed

90 km/h

10、Transmission

5forward gear,1 reverse gear

11、brake system

Air brake

12、Approach/departure angle

18/12  °

13、front/ rear hang

1032/1658 mm

14、steering type

Left- hand drive( right-hand drive can opt)

15、cabin

 White (other colors are available), Flat, luxurious interior trim and seat, with air conditioning and power steering,forward flip。

16、Performance characteristic

A, with multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.

B, Oil pump is installed to suck or discharge oil, with high suction pressure and speed.

C, Computer refueling machine is installed, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.

D, according to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.

E, according to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves

II. Chassis parameter

1、 Chassis model

EQ1060TJ20D3

2、 Brand name

DongFeng

3、manufacturer

DongFeng Motor  Co.,Ltd.(China second automobile group company)

4、Drive type

4 x 2

5、Wheel base

3300 mm

6、Front track base

1506 mm

7、Rear track base

1466 mm

8、Tire specification

7.00R16

9、tyre number

6+1(spare tyre)

10、axle load

2595/3900 kg

11、axle number

2

III. Engine parameter

1、engine type(emission/power)

CY4102-C3F (3856 ml / 70kw )

2、 Engine manufacturer

Dongfeng Chaoyang Diesel Engine Co.,Ltd.

3、Fuel type

Diesel

4、Emissions standards

Euro3
