Main specifications

Product model、name

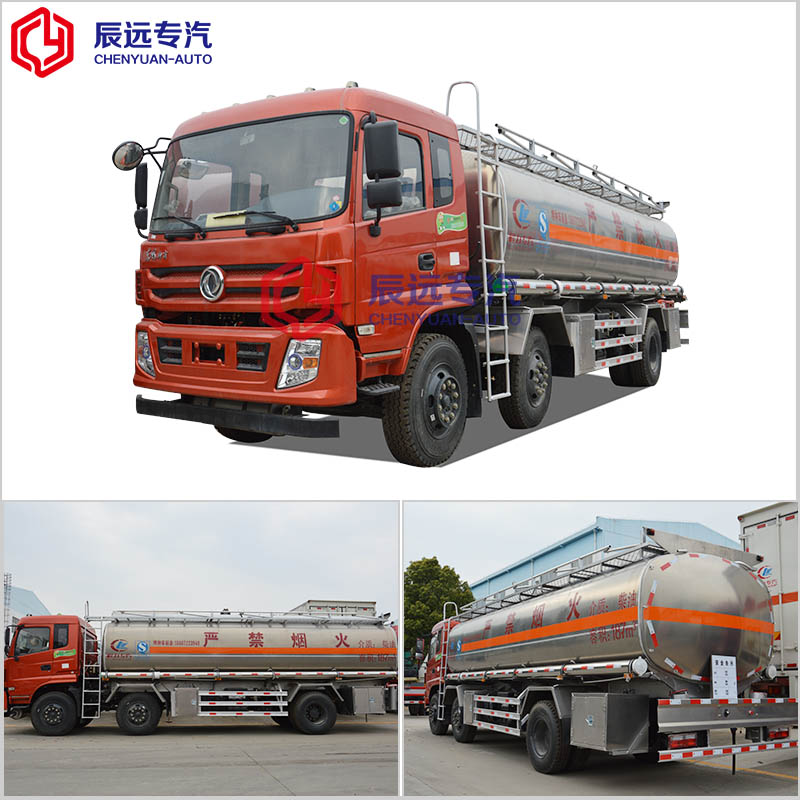

CSC5250GYYDB  fuel tanker truck

Gross weight(Kg)

25000

Driving type

6X2

Payload (Kg)

14350

Overall dimension (mm)

10800×2480×3300

Curb weight(Kg)

10455

Cab seats (man)

3

Approach/departure angle (°)

23/11

Front/rear hang(mm)

1430/2570

Axle No.

3

Wheelbase (mm)

1700+5100

Axle load(Kg)

7000/7000/11000

Max speed(Km/h)

80

Chassis specifications

Chassis model

DFL1250BX5A

Manufacture

Dongfeng Motor Company

Brand name

Dongfeng (KinRun)

Fuel type

diesel

Tire specification

10.00R20

Tires No.

8

Front track(mm)

1915/1915

Rear track(mm)

1860

Emission standard

Euro IV

Gear box

7  forward gears

Cab

D530 flat top with ABS, half row flat top cab, electric glass lifter, central control door lock, channel type instrument panel, with air conditioner.

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

ISDe210 40

Dongfeng Cummins Engine Co., Ltd.

6700

155

Performance

Tank capacity（L/m³）

22CBM

Tank material

Aluminium alloy

Transport medium

Petrol or diesel

Main Characteristic

A, with multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.

B, Oil pump is installed to suck or discharge oil, with high suction pressure and speed.

C, according to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.

D, according to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves.

1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
