Main specifications

Product model、name

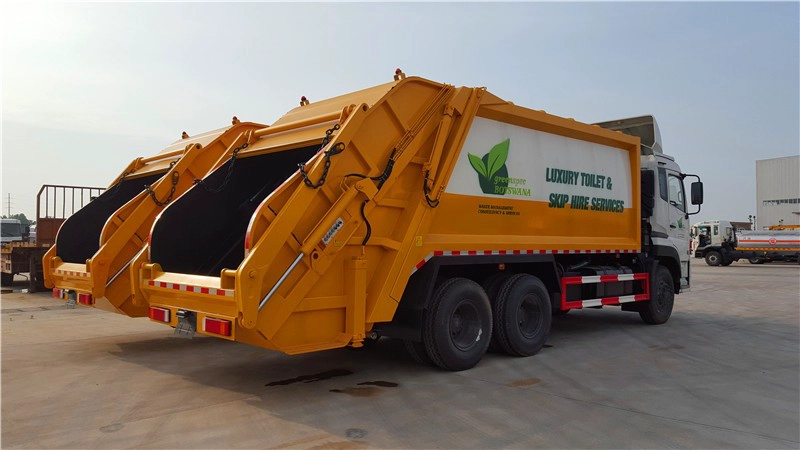

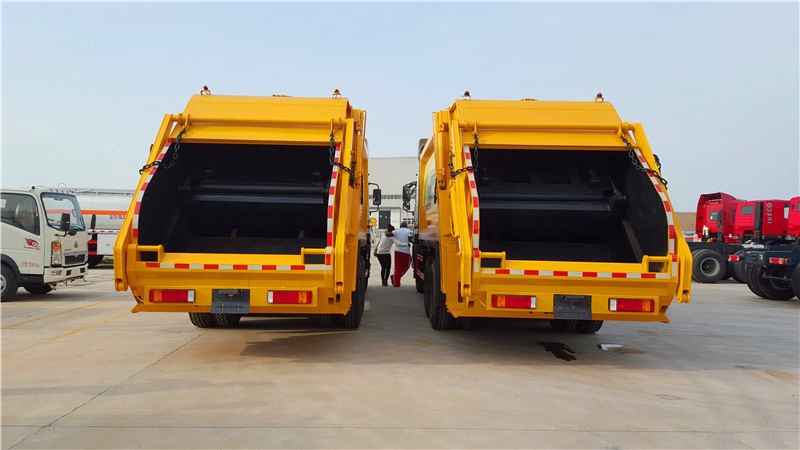

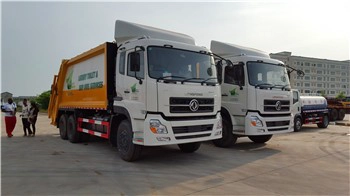

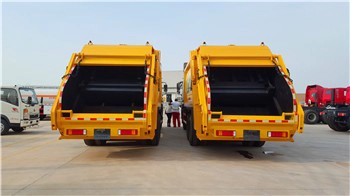

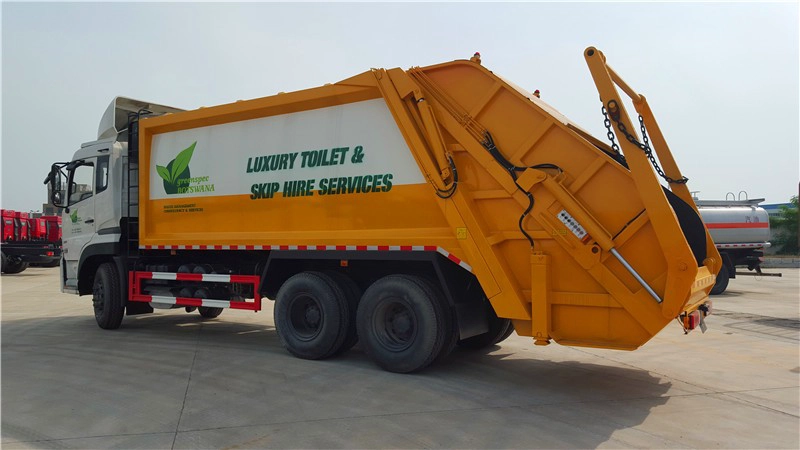

ALA5250ZYSDFL3 Compression Garbage Truck

Gross weight(Kg)

25000

Driving type

6*4

Payload (Kg)

10500

Overall dimension (mm)

10000*2490*3400

Curb weight(Kg)

14370

Cab seats (man)

3

Approach/departure angle (°)

20/11

Front/rear hang(mm)

1460/2890

Axle No.

3

Wheelbase (mm)

4350+1350

Axle load(Kg)

7000/18000 (double axle)

Max speed(Km/h)

90

Chassis specifications

Chassis model

DFL1250A8

Manufacture

Dongfeng motor company

Brand name

Dongfeng

Overall dimension (mm)

9460*2480*3030

Tire specification

11.00-20

Tires No.

10+1

Steel spring number

8/9,8/10

Front track(mm)

1986

Fuel type

Diesel

Rear track(mm)

1860

Emission standard

Euro Ⅲ

Gear box

Shanchi 9JS119T-B 9 gearbox

Cab

D310 flat standard cab, airbag shock absorber driver seat, channel dashboard, with air conditioning

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

C260 33

Dongfeng cummins engine co.,ltd

8300

191

Performance

Body capacity（m³）

20

Hopper capacity（m³）

2.4

Compression cycle time（S）

30

Unload garbage time（S）

40

Control system

Manual + Automatic

Main Characteristic

1、Can choose 240L（single bin、double bins）or 360L、660L、1100L standard bin lifting and turnover mechanism，can also choose ground hopper and other kinds of loading mechanism.

2、With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.

3、With working device of emergency braking stop button。

4、Garbage body use frame design, elegant, strong structure, large effective capacity.

5、Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.

6、Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600～800kg／m3 after compression.
