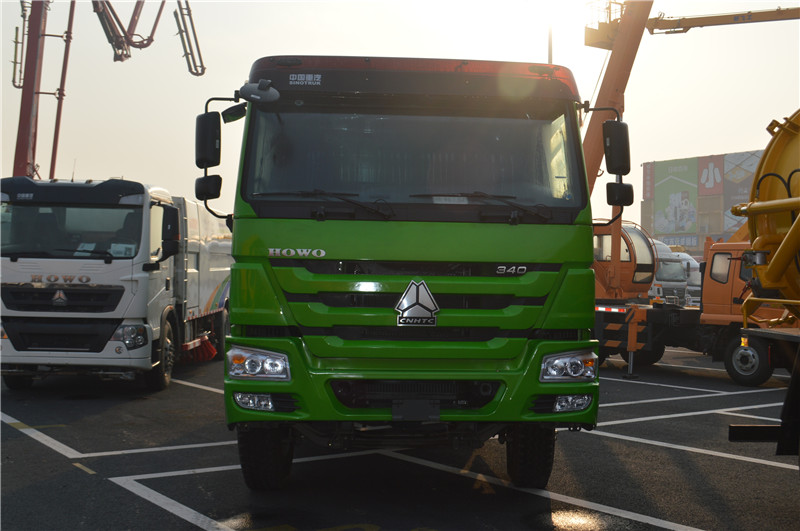

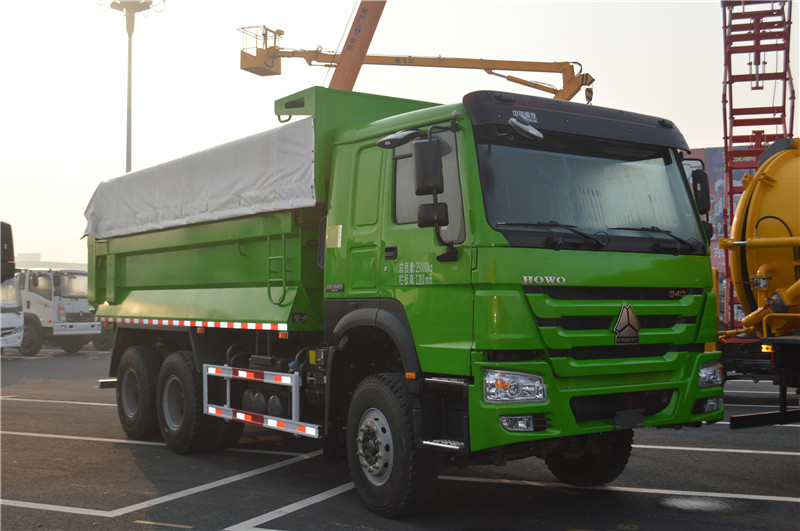

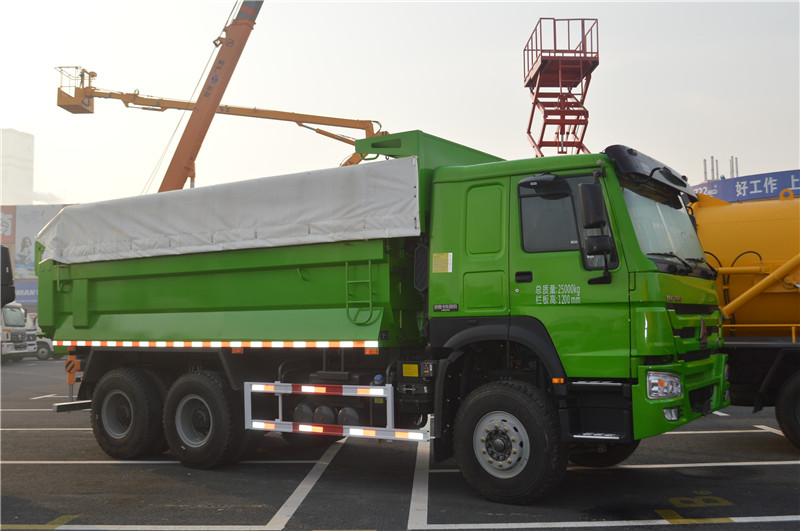

HOWO 6x4 china dump truck for sale in dubai

  • 1.Production name: dump truck
  • 2. Production model: ZZ1257M4347D1
  • 3. Overall dimensions (mm): 8650X2500X3450
  • 4. Wheel base (mm): 4325+1350
  • 5. type of fuel: diesel
  • 6. Issuance standard: Euro III

HOWO 6x4 china dump truck for sale in dubai




Summary

Hydraulic dumpingmechanism mainly consists of pneumatic control valve, power take-off, gear pumpdrive shaft, gear pump, etc.

Pneumatic controllifting valve, hydraulic cylinder, hydraulic oil tank, hydraulic pipeline,limit valve and other components.The power of the engine is output from thepower take-off on the transmission, and the gear pump is driven by thetransmission shaft, and the hydraulic pressure is driven by the transmissionshaft.The oil is pressed into the hydraulic cylinder through the gear pump,thus pushing the piston of the hydraulic cylinder to lift the carriage. Therole of hydraulic oilThe piston of the lower hydraulic cylinder will continueto rise. When the hydraulic system is restricted to return oil, the piston willno longer continue to rise.

At this time, thecarriage is at the angle of maximum lifting angle.



Dump truck feature

①.  Dump truck is alsocalled tipper and engineering truck.It is made up of auto chassis, hydrauliclifting mechanism,take power device and cargo body.

②.  In the civilengineering,it is often used to joint excavator, loader, belt conveyor etc. tooperate to form the production line of loading,transport and unloading.It isused for loading and unloading transportation for earthwork,sandstone and loosematerials.

③.  As the loading vancan unload automatically by tilting the angle,it can save the unloading timeand labor, shorten the delivery cycle, improve production efficiency and reducethe transportation cost,so that it is common transportation machinery to beused.




No.

Item name

Unit

Specification/Technical parameter

1

Product name



dump truck

2

Drive type



6*4

3

Steering wheel



Left hand drive

4

Overall size

mm

8650X2500X3450

5

Gross weight

kg

25000

6

Rated payload

kg

14000

7

Curb weight

kg

10870

8

Axle



3

9

Wheelbase

mm

4325+1350

10

Max speed

Km/h

102

11

Chassis model



ZZ1257M4347D1

12

Chassis brand



HOWO

13

Chassis manufacturer



China Heavy Truck Group Ji'nan truck Limited by Share Ltd

14

Engine model



D10.28-40

15

Engine manufacturer



China heavy-duty automobile group Co., Ltd.

16

Displacement/power

ml/kw

9726/206

17

Emission



Euro IV

18

Fuel type



Diesel

19

Tyre specification/ tyre number



12.00R12

20

Gear box



9 forward gears and 1 reverse gear

21

Front / rear axle

T

16/23

22

Cabin



H76 flat top, with air conditioning.

23

Cabin allowed seats



3

24

Inner cargo van size

mm

6000/5800/5600x2300x1100/1500

25

Cargo van material



Q235 Carbon Steel

26

Cargo van thickness



Side 6mm bottom 8mm(other  thicknesses are available)

27

Lift way



Front lift(Middle lift is available)

28

Dump truck is also called tipper and engineering truck.It is made up of auto chassis, hydraulic lifting mechanism,take power device and cargo body.In the civil engineering,it is often used to joint excavator, loader, belt conveyor etc. to operate to form the production line of loading,transport and unloading.It is used for loading and unloading transportation for earthwork,sandstone and loose materials.As the loading van can unload automatically by tilting the angle,it can save the unloading time and labor, shorten the delivery cycle, improve production efficiency and reduce the transportation cost,so that it is common transportation machinery to be used.




















1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
