Main specifications

Product model,name

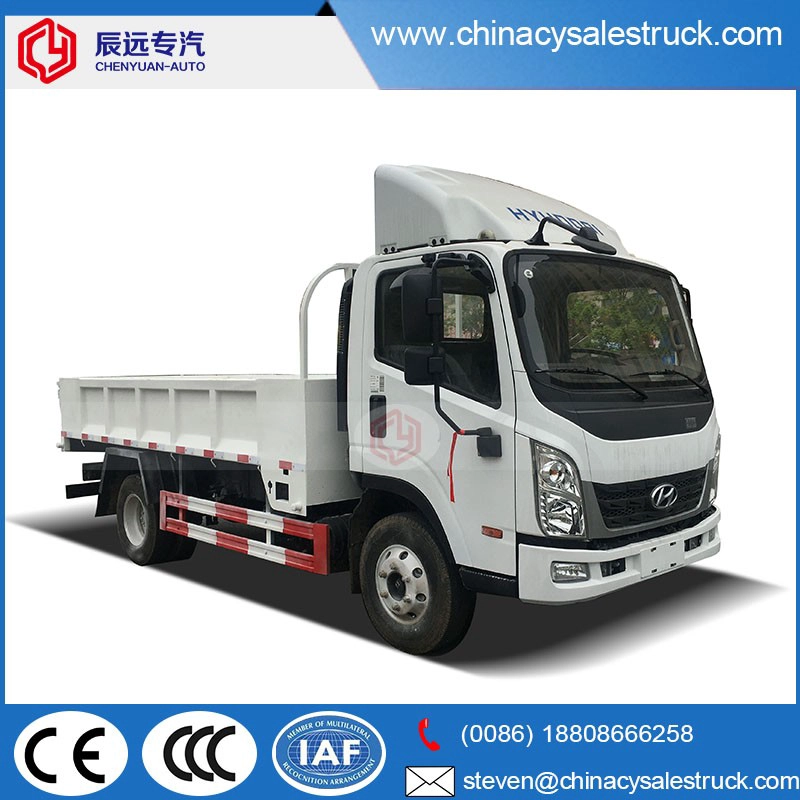

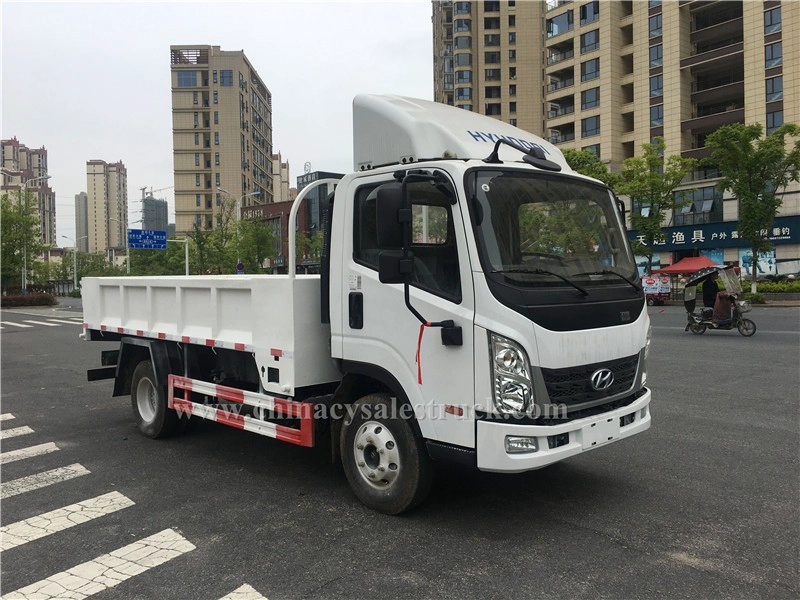

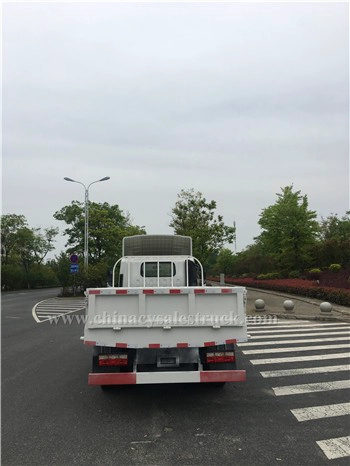

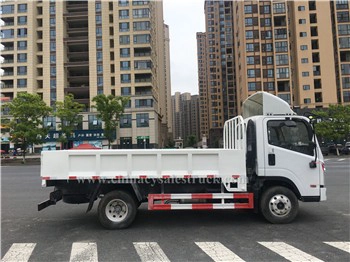

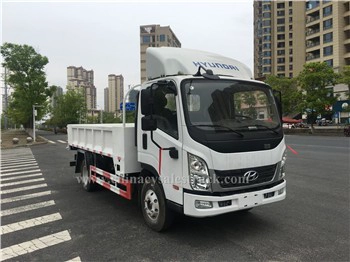

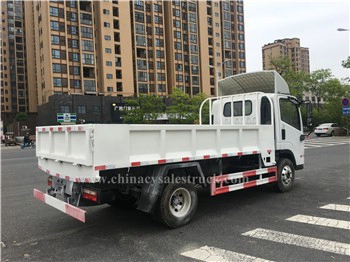

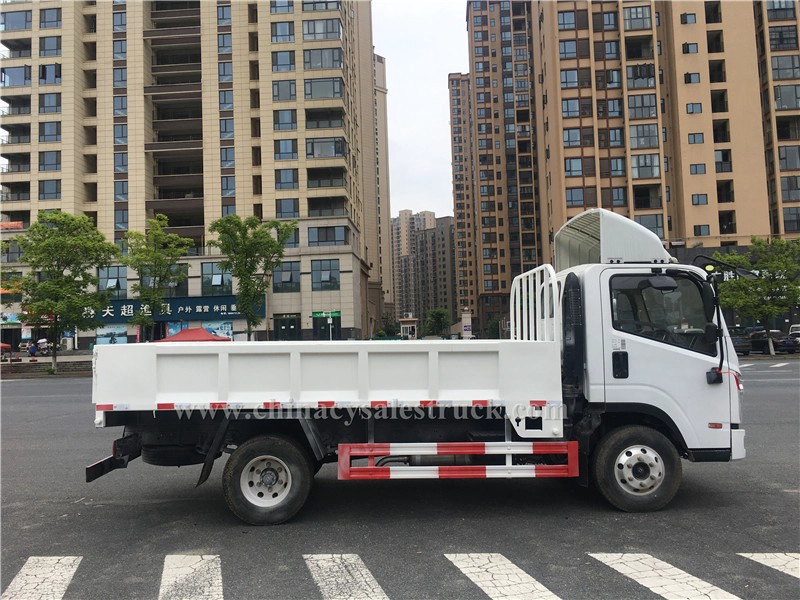

CLW1041QDA33V Cargo truck without Self unloading (with AC)

Total weight(Kg)

4495

Overall dimension (mm)

5995×2030×2382

Payload (Kg)

1735

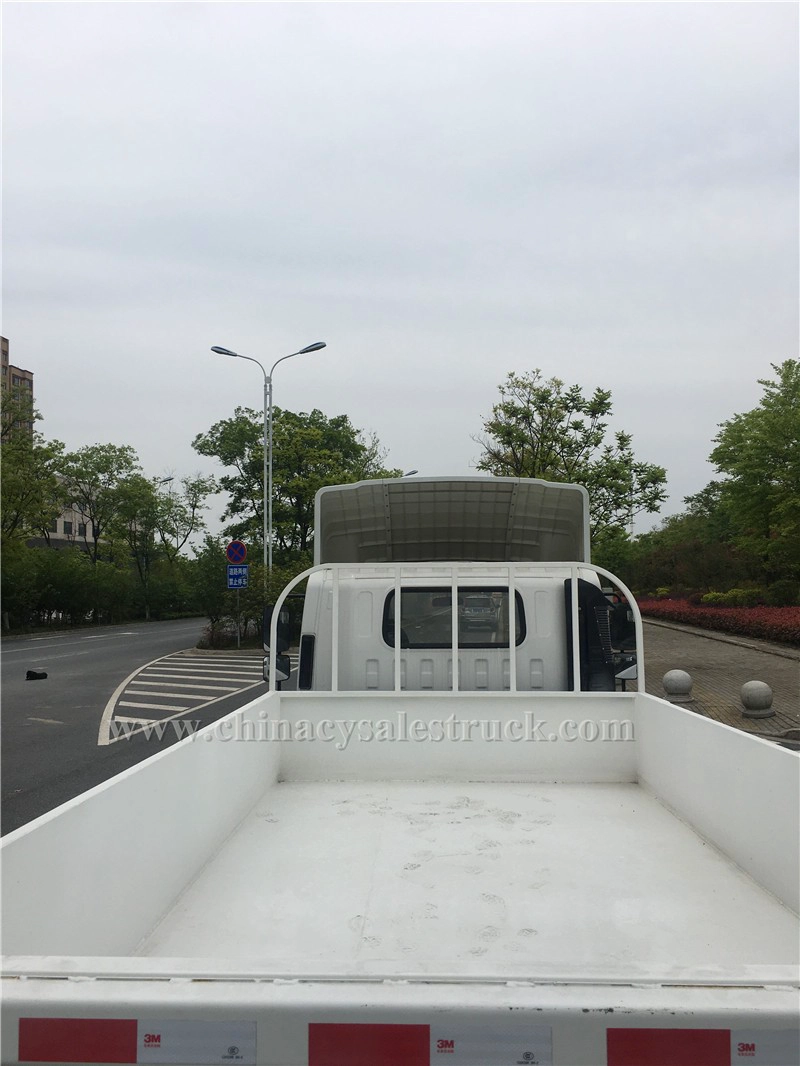

Boby dimension (mm)

4160x2120x550

Curb weight(Kg)

2565

Front/rear hang(mm)

1120/1575

cab seats (man)

3

Wheelbase(mm)

3300

Approach/departure angle (°)

22/14

Max speed(Km/h)

110

Number of axles

2

Axle load(Kg)

1700/2795

Chassis specifications

Chassis model

CHM1041QDA33V

Manufacturer

Jiangling Automobile

Brand name

Hyundai brand

Tires No.

6+1(spare tyre)

Overall dimension(mm)

5650×1900×2210

Tire specification

7.00R16

Approach/departure angle (°)

27/22

Front track(mm)

1755

Steel spring number

3/9+7,9/11+8,3/3+3

Rear track(mm)

1640

Type of fuel

Diesel

Transmission

5 Forward Gear,1 reverse

Emission standard

Euro V

Cab

Hyundai Hongtu 300, Single row new style cab, 5-35CY2K Gearbox , Power steering, 120L aluminum alloy fuel tank, air brake, central control Lock, electric doors and windows, remote control key, radio + MP3 + USB (steering wheel remote control), heater + air conditioning

Engine information

Engine model

YC4FA130

Engine manufacture

Guangxi Yuchai Machinery Co., Ltd.

Displacement(ml)/ Power(Kw)

2982/95

Max Torque

340 N.m

Speed at Max Torque

3200

1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
