Dongfeng 8000-10000 kg Truck mounted crane for sale
- 1.Production name: truck mounted crane
- 2.Production model: EQ1050NJ20D3
- 3.Overall dimensions(mm): 6260X1900X2750
- 5.Wheel base(mm): 5350+1300,5700+1300
- 6.Fuel Type: Diesel
- 7.Emission standard: Euro III

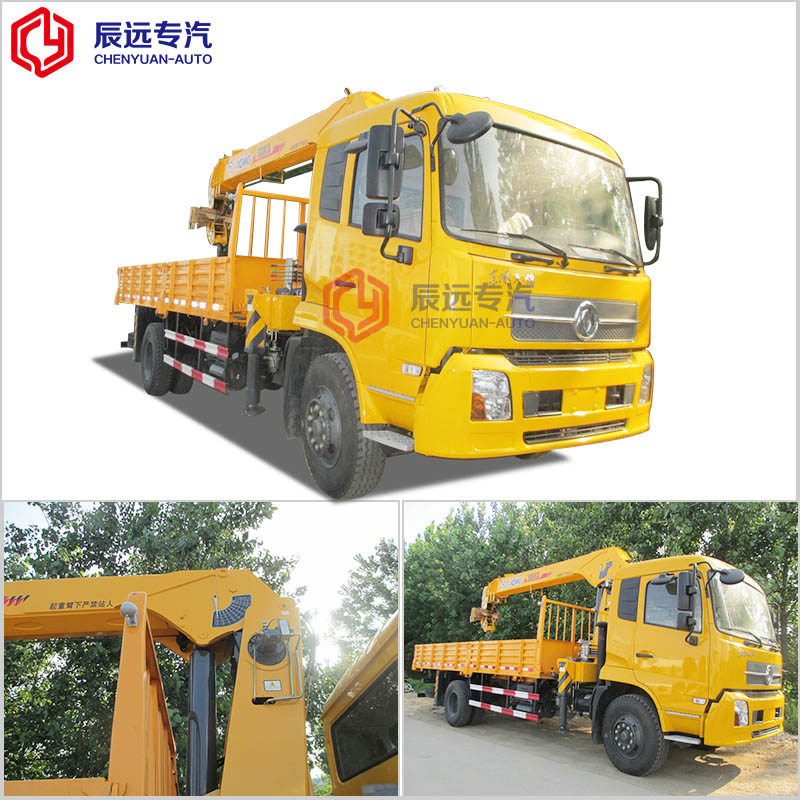

Dongfeng 8000-10000 kg Truck mounted crane for sale
|
I.Main specifications |
|||||||
Product model、name |
CLW5250JSQ3 CRANE TRUCK |
||||||
Total weight(Kg) |
25000 |
Driving type |
6 x 4 |
||||
Payload (Kg) |
9815,9935,9880,10000 |
Overall dimension (mm) |
10980,11980×2500×3750 |
||||
Curb weight(Kg) |
14990,14870 |
Box internal dimension(mm) |
7300,7400,8300,8400×2294×800,550 |
||||
cab seats (man) |
3,2 |
Front/rear hang(mm) |
1460/2870,1460/3520 |
||||
Approach/departure angle (°) |
20/13 |
Wheelbase(mm) |
5350+1300,5700+1300 |
||||
Number of axles |
3 |
Max speed(Km/h) |
90 |
||||
Axle load(Kg) |
7000/18000 |
|
|
||||
II.Crane specification |
|||||||
Crane model |
SQ8SA3,SQ10SA2 |
Crane brand |
CLW |
||||
Max lifting weight(kg) |
8000, 10000 |
Max lift height(m) |
14.5,11.5 |
||||
Working radius(m) |
12.5,9.5 |
Supporting leg |
2PCS |
||||
III.Chassis specifications |
|||||||
Chassis model |
DFL1250A9 |
Chassis category |
the truck classis (class 2) |
||||
Brand name |
Dongfeng |
Manufacture |
Dongfeng Motor company |
||||
Overall dimension(mm) |
10460,10810,10640,10990,11080,11430×2480×3030,3600,3690 |
Tires No. |
10 |
||||
Approach/departure angle (°) |
20/16,15,13 |
Tire specification |
10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5 |
||||
Steel spring number |
8/9 |
Front track(mm) |
1986,2040 |
||||
Type of fuel |
Diesel |
Rear track(mm) |
1860/1860 |
||||
Emission standard |
GB3847-2005,GB17691-2005 Euro Ⅲ |
||||||
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
||||
ISDe230 30 ISDe245 30 ISDe270 30 C245 33 C230 33 C260 33 |
Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins |
6700 6700 6700 8300 8300 8300 |
169 180 198 180 170 191 |
||||
IV.Functions |
|||||||
Special used for cargo lifting and transportation at stations、warehouse、docks、construction sites and filed resuce. |
|||||||
