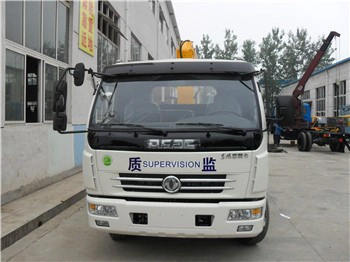

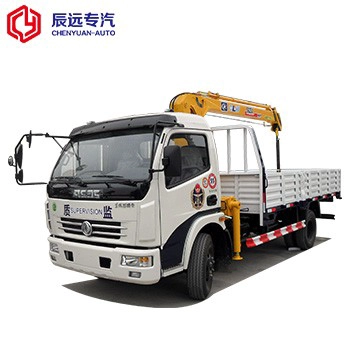

DLK 5 tons capacity truck with crane mounted truck price

  • 1.Production name: 5 Tons crane with truck
  • 2.Production model: CLW5110JSQ3
  • 3.Overall dimensions(mm): 7050×2420×3150
  • 4.Box internal dimension(mm):4200×2050×550
  • 5.Wheel base(mm): 3800
  • 6.Engine model:CY4102-E3C
  • 7.Fuel Type: Diesel
  • 8.Emission standard: Euro III
  • 9.Crane model:SQS84 / SQS100
  • 10.Working radius(m):7.93 / 9.4m
  • 11.Number of arms:3 / 4

DLK 5 tons capacity truck with crane mounted truck price

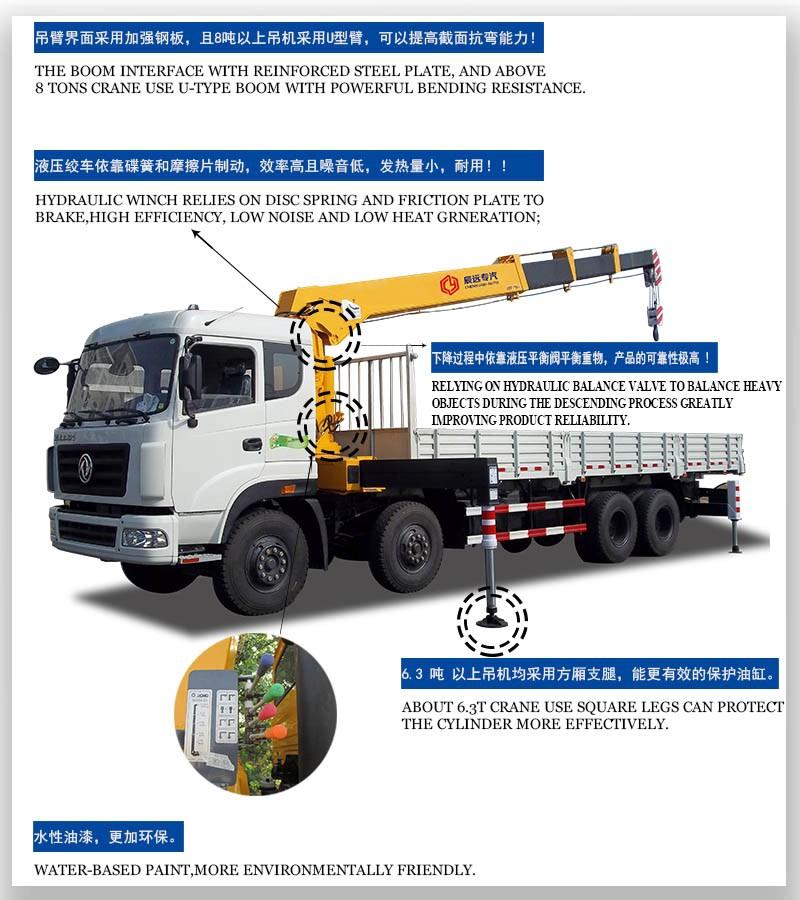

Advantage of Our Crane Mounted Truck

 1.We have adopted the advanced technology of numerical-controlled plasma incision and conduct sophisticated processing of the truck parts.

 2.The boring-milling process enables a higher concentricity of the parts and extends its life spans.

 3.The invisible H-shaped outriggers,the double horizontal outriggers and the vertical outriggers at the back integrately enable a wider expansion and more safety.

 4.The material of our splices comes from the USA with a oil tube which have better leakproofness, oxidation resistance and incorruptiblenesses.

 5. We independently developed the motor hydraulic station of truck'a cranes which strengthens the driving force, enables stable operation and energy conservation.





【Main specifications】

Product model、name

CLW5110JSQ3 Truck With Crane

Gross vehicle weight(kg)

11495

Drive type

4 x 2

Payload(kg)

5860

cab seats (man)

3

Curb weight(Kg)

5440

Overall dimension (mm)

7050×2420×3150

Approach/departure angle (°)

22/12

Box internal dimension(mm)

4200×2050×550

Number of axles

2

Front/rear hang(mm)

1180/2070

Axle load(Kg)

4100/7395

Wheelbase(mm)

3800

Max speed(Km/h)

90





【Chassis specifications】

Chassis model

EQ1110T9ADJ3AC

Brand name

Dongfeng

Manufacturer

Dongfeng Motor Corporation

Tires No.

6

Approach/departure angle (°)

22/13

Tire specification

8.25-16

Steel spring number

11/9+7,8/10+7

Front track(mm)

1831,1750

Fuel type

Diesel

Rear track(mm)

1640,1586

Emission standard

Euro III

Transmission

5 gears

Cabin

Yellow(other colors are available), Flat, luxurious interior trim and seat, with air conditioning.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng chaoyang chaochai power co., LTD

3856

91

【Crane specification】

Crane model

SQS84 / SQS100

Crane brand

XCMG

Type of Crane

Telescopic boom

Crane weight (kg)

1220

Max lifting weight(kg)

4000

Max lift height(m)

10 / 11.5m

Working radius(m)

7.93 / 9.4m

Operation method

floor operation

Number of arms

3 / 4

Outrigger (pcs)

2 / 4

【Functions】

The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate.





































1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
