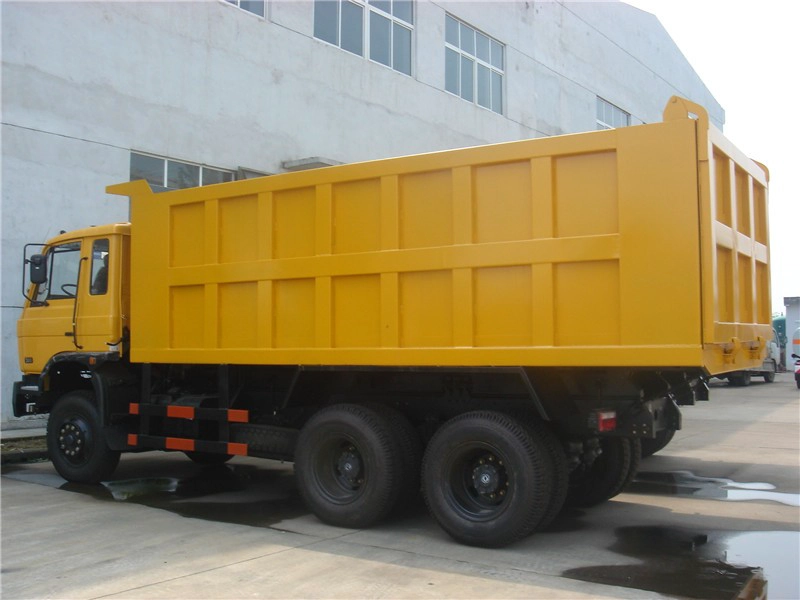

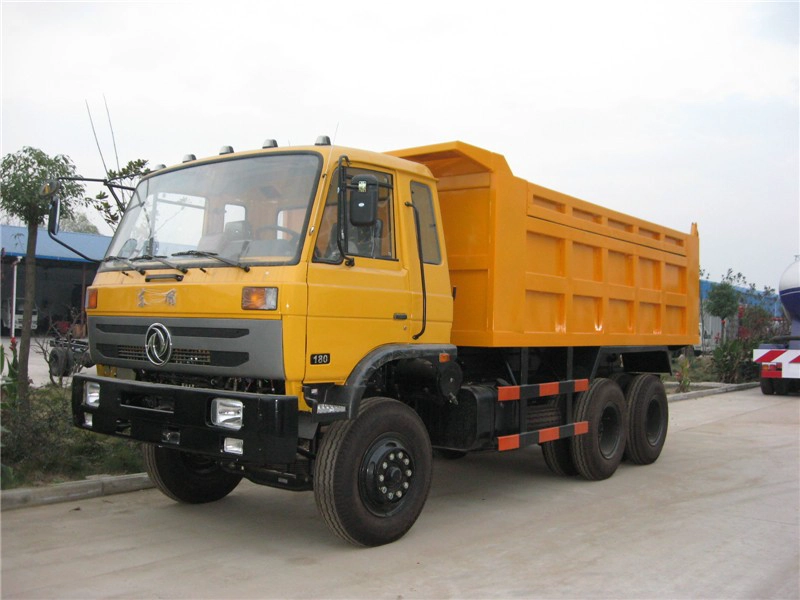

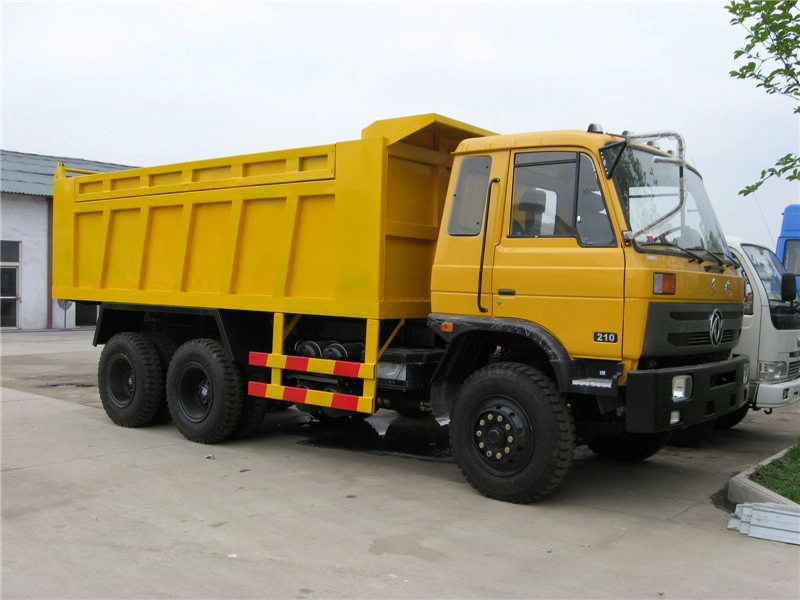

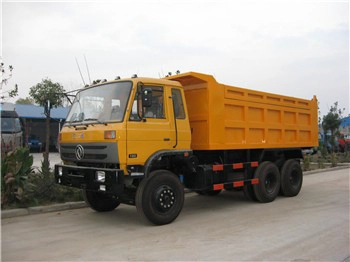

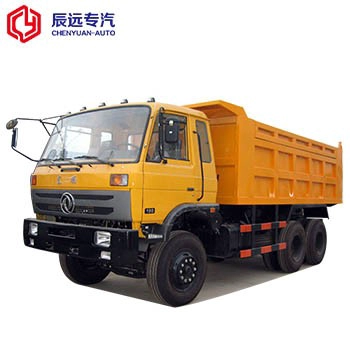

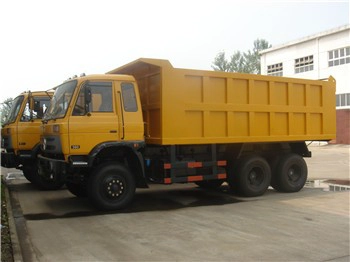

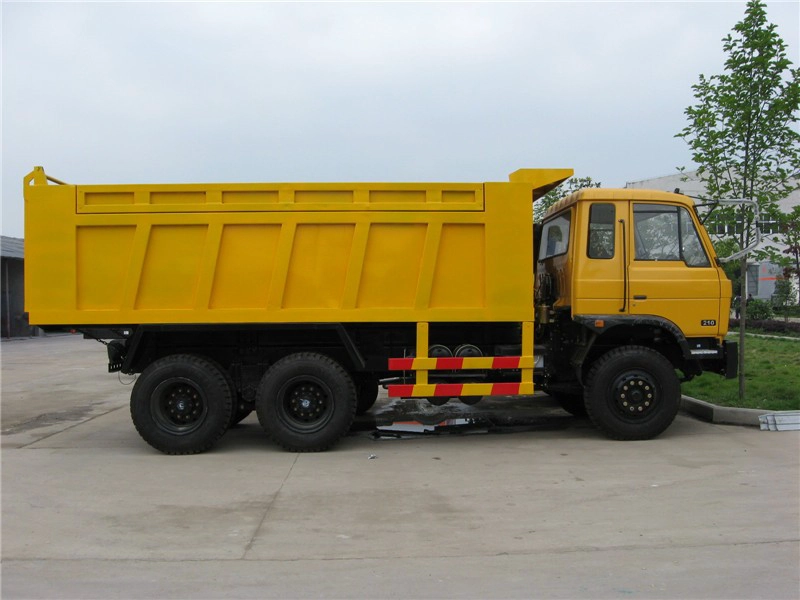

Dongfeng 6x4 drive used china dump truck with 20 tons for sale

  • 1. Name of production: dongfeng dump truck
  • 2. Production model: DFZ3121
  • 3. Overall dimensions (mm): 7700x2480 × 2980
  • 4. Dimension of the box (mm): 5400X2300X1200
  • 5. Wheel base (mm): 4350+1300
  • 6. type of fuel: diesel
  • 7. Issuance standard: Euro III
  • 8. Engine model: YC6A260-33
  • 9. Loading capacity (Tons):20-25

Dongfeng 6x4 drive used china dump truck with 20 tons for sale





Summary

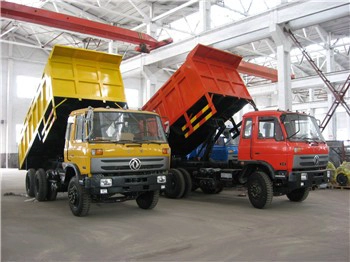

Hydraulic dumping mechanism mainly consists of pneumatic control valve, power take-off, gear pump drive shaft, gear pump, etc.

Pneumatic control lifting valve, hydraulic cylinder, hydraulic oil tank, hydraulic pipeline, limit valve and other components.The power of the engine is output from the power take-off on the transmission, and the gear pump is driven by the transmission shaft, and the hydraulic pressure is driven by the transmission shaft.The oil is pressed into the hydraulic cylinder through the gear pump, thus pushing the piston of the hydraulic cylinder to lift the carriage. The role of hydraulic oilThe piston of the lower hydraulic cylinder will continue to rise. When the hydraulic system is restricted to return oil, the piston will no longer continue to rise.

At this time, the carriage is at the angle of maximum lifting angle.




Main specifications

Product model、name

Dump truck

Gross weight(Kg)

25000

Driving type

6 x 4

Loading capacity (Tons)

Around 20-25

Overall dimension (mm)

8748X2495X3100

Curb weight(Kg)

12495

Overall dimension (mm)

5400X2300X1200

Front/rear hang(mm)

1245/2670

Steering wheel

Left hand drive

Cab seats (man)

3

Wheelbase (mm)

4350+1300

Approach/departure angle (°)

28/15°

Max speed(Km/h)

85

Chassis specifications

Chassis model

EQ5253GFJ2

Manufacture

Dongfeng Motor Corporation

Brand name

DongFeng brand

Overall dimension (mm)

8565x2470x2850

Tire specification

10.00-20(nylon tire)

Tires No.

10+1

Steel spring number

9/10

Front track(mm)

1940

Fuel type

Diesel(200L)

Rear track(mm)

1860

Emission standard

Euro 3

Transmissions

8 speed forward and 1 reverse.

Cab

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Engine Information

Model

YC6A260-33

Power/ Displacement

191/7255 Kw/ml

Max.torque

960N.m

Manufacturer

Guangxi Yuchai Machinery Limited by Share Ltd

Dump truck structure parameters

Van body dimensions

5400X2300X1200

Side wall

6 mm

Bottom plate

8mm

Van body material

Common steel

Lifting position

Middle

Dumping direction

Rear

Oil Cylinder

Domestic 220

Color and Logo

Optional

Standard configuration

364 chassis,sub frame,van body side 6mm bottom 8mm,domestic middle lifting hydraulic cylinder 220,common steel,four longitudinal beams,rectangular van body,single door




Dump truck feature

①.  Dump truck is also called tipper and engineering truck.It is made up of auto chassis, hydraulic lifting mechanism,take power device and cargo body.

②.  In the civil engineering,it is often used to joint excavator, loader, belt conveyor etc. to operate to form the production line of loading,transport and unloading.It is used for loading and unloading transportation for earthwork,sandstone and loose materials.

③.  As the loading van can unload automatically by tilting the angle,it can save the unloading time and labor, shorten the delivery cycle, improve production efficiency and reduce the transportation cost,so that it is common transportation machinery to be used.
