DongFeng 4x2 Small swing arm garbage truck manufacturesDongFeng 4x2 Small swing arm garbage truck manufacturesDongFeng 4x2 Small swing arm garbage truck manufactures

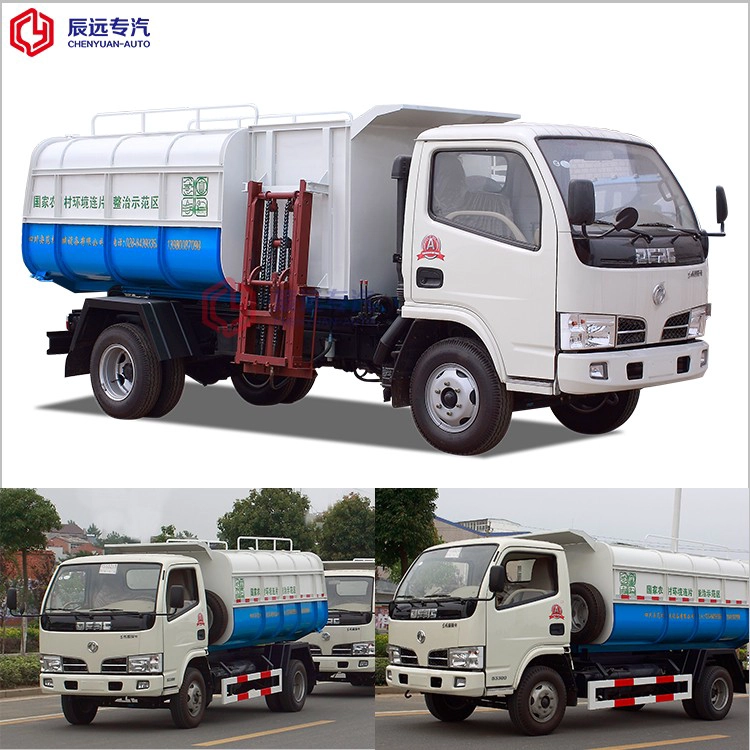

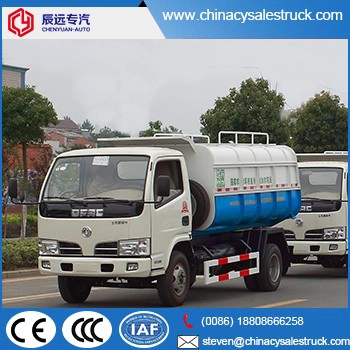

DongFeng 4x2 Small swing arm garbage truck manufactures

  • 1.Production name: Self Loading Garbage Truck
  • 2.Production model: LW5071ZZZ4
  • 3.Overall dimensions(mm): 5995 X 2095 X 2900
  • 5.Wheel base(mm): 3300
  • 6.Fuel Type: Deisel
  • 7.Emission standard: Euro III
  • 8.Gearbox: 5 forwards 1 backward
  • 9. Left hand drive
  • 10.Engine model: CY4102-CE4F

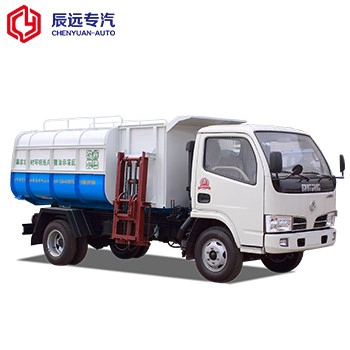

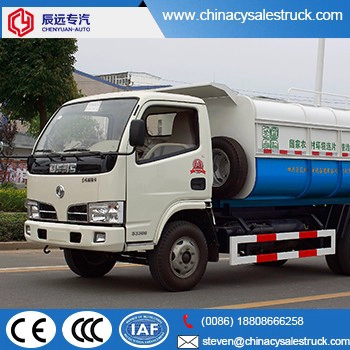

DongFeng 4x2 Small swing arm garbage truck maufactures






Main specifications
Product model、name CLW5071ZZZ4 Self Loading Garbage Truck
Total weight(Kg) 7300 KG Tanker capacity: 5 m3
Payload (Kg) 3320, 3255 KG Overall dimension (mm) 5995 X 2095 X 2900 mm
Curb weight(Kg) 3850 KG Front/rear hang(mm) 1032/1486
cab seats (man) 2,3 Wheelbase(mm) 3300
Approach/departure angle (°) 19/14 Max speed(Km/h) 95
Number of axles 2 Axle load(Kg) 2920/4380
Chassis specifications
Chassis model DFA1070SJ35D6
Brand name  DongFeng Manufacturer Dongfeng Motor Group Coo.,Ltd
Overall dimension(mm) 5845 X 1900 X 2220 mm Tires No. 6+1(spare tyre)
Approach/departure angle (°) 19/16 Tire specification 7.00-16 14PR, 7.00R16 14PR
Type of fuel Diesel  Front track(mm) 1506  , 1404
  Rear track(mm) 1466, 1458
Emission standard GB3847-2005,GB17691-2005Euro Ⅳ
Chassis model Engine manufacture Displacement(ml) Power(Kw)
CY4102-CE4F DongFeng Chaoyang Diesel Co.,Ltd 3856 73



















1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
