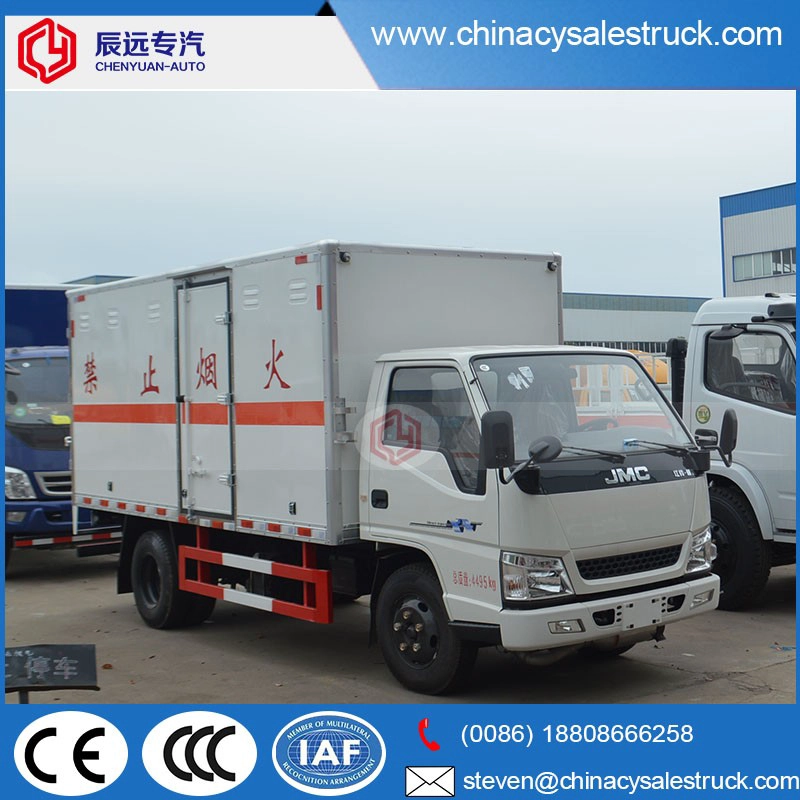

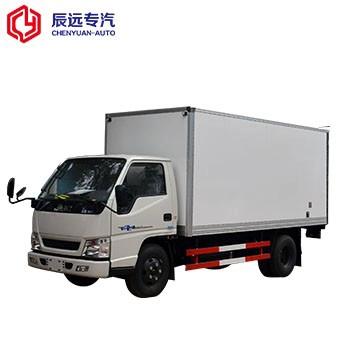

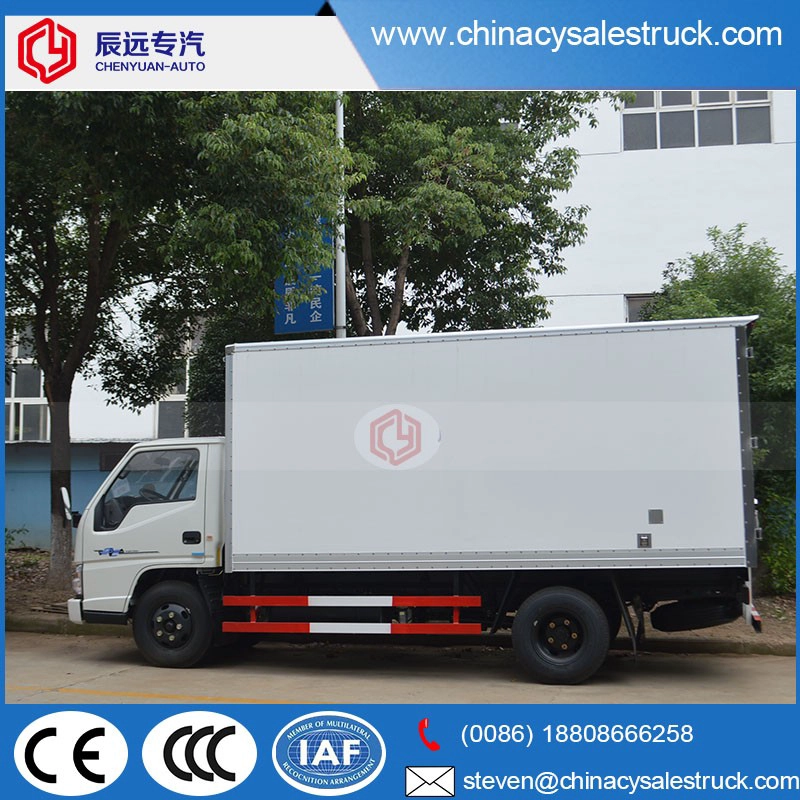

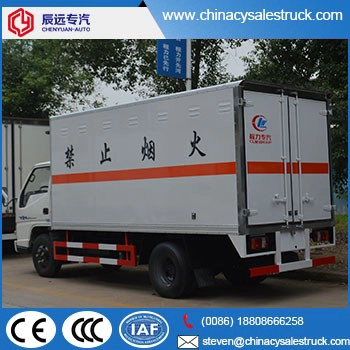

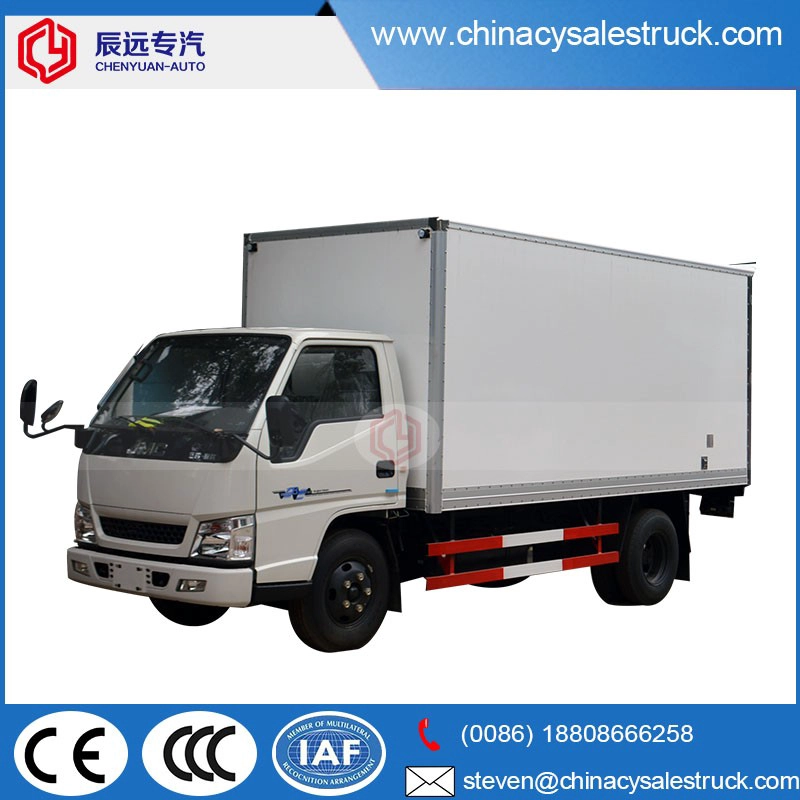

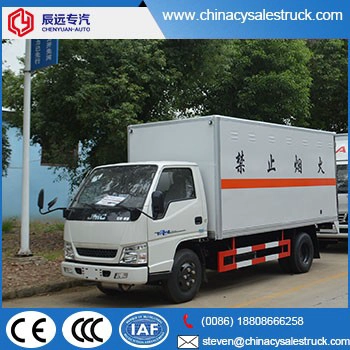

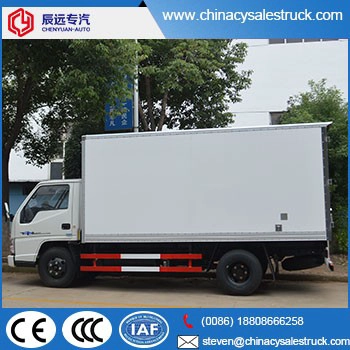

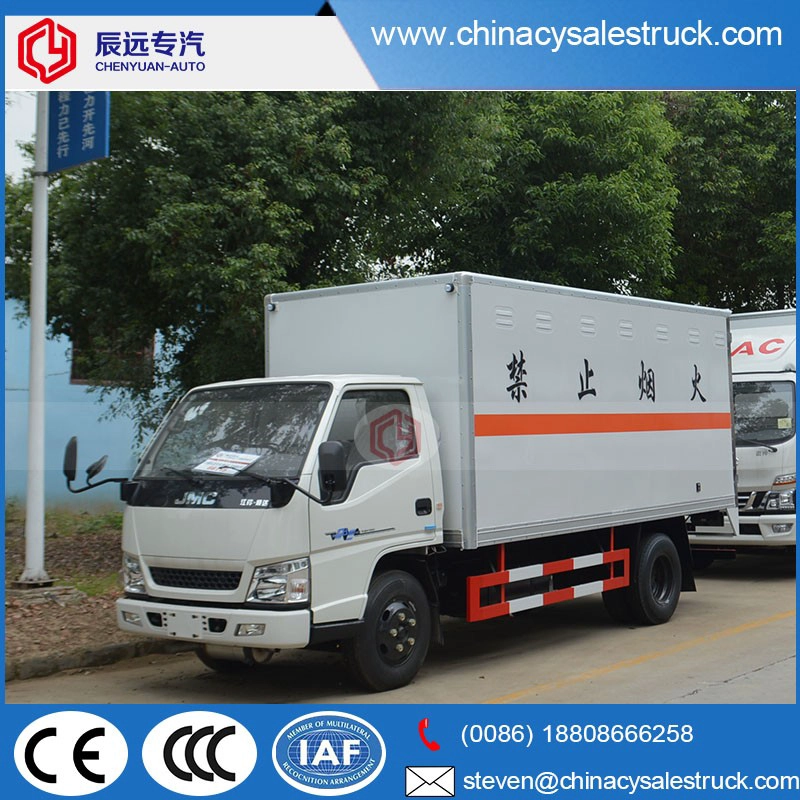

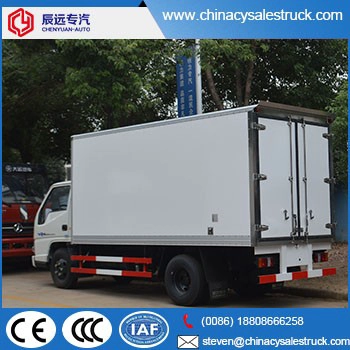

EURO 3 box refrigerated truck,van vehicle for sale

  • 1. Production name: Refrigerator truck
  • 2. Production model: CLQ5060XLC4
  • 3. Dimensions (mm): 5990×1950×2880
  • 4.Wheel base (mm): 3360
  • 5. Fuel type: diesel
  • 6. Emission standards: Euro IV
  • 7.Van body size(mm):4200×1750×1750
  • 8.Load capacity(TON):3
  • 9.Lowest refrigeration temperature(℃):0~-18 Centigrade

EURO 3 box refrigerated truck,van vehicle for sale










Main specification

Product model and name

CLQ5060XLC4  Refrigerator truck

Gross weight(Kg)

5790

Drive type

4x2

Payload(Kg)

2500

Overall dimension(mm)

5990×1950×2880

Curb weight(Kg)

3160

Cab seats

2

Approach/departure angle(°)

27/16

Front/rear hang(mm)

1015/1615

Axle No.

2

Wheelbase(mm)

3360

Axle load(Kg)

2200/3590

Max speed(Km/h)

80

Chassis specification

Chassis model

JX1060TG24

Manufacturer

Jiangling Auto Co.,Ltd

Brand name

JMC

Dimension(mm)

5825×1880×2020

Tyre specification

7.00R16LT

Tyre No.

6

Steel spring number

7/5+5

Front track base(mm)

1385

Fuel type

Diesel

Rear track base(mm)

1425

Emission standard

Euro 4

Transmission

5 forward gear,1 reverse gear

Cab

Single row, luxurious interiors and seats with power steering. Air condition is optional.

Engine information

Engine model

JX493ZLQ4

Engine manufacturer

Jiangling Auto Co.,Ltd

Displacement(ml)/ Power(Kw)

2771/80(109hp)

Max Torque

220 N.m

Speed at Max Torque

3800 rpm

Performance

Van body size(mm)

4200×1750×1750

Load capacity(TON)

3

Lowest refrigeration temperature(℃)

-18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
