DFAC 4X2 outdoor advertising LED truck P4,P5,P6,P8,P10 screen factory

  • 1) Production Name: Mobile LED truck
  • 2) Production brand: DFAC brand
  • 3) Driving direction: Left hand drive
  • 4) Standard of emission: Euro III
  • 5) Tire specification: 7.00-16
  • 6) Fuel type: Diesel
  • 7) LED screen size (Left and size): 3840 x 1760 mm
  • 8) Control system: LINSN
  • 10) Engine model: D28D10-3D3
  • 11) Spray Color: Any Color

DFAC 4X2 outdoor advertising LED truck P4,P5,P6,P8,P10 screen factory






Main specification

Product model、name

LED Truck (Right hand drive)

Total weight(Kg)

4495

Drive type

4 x 2

Curb weight(Kg)

4365

Overall dimension (mm)

5990×1990×2950

Wheelbase(mm)

3300

Cab seats (man)

2

Approach / departure angle(°)

19/18

Front/rear hang(mm)

1032/1658

Axle load

1800/2695

Max speed(Km/h)

95

Chassis specification

Chassis model

EQ1070T35DJ3AC

Manufacturer

Dongfeng Motor Group Coo.,Ltd

Brand name

DFAC

Number of axes

2

Tire specification

7.00-16

Tires No.

6

Leaf spring

8/9+5,6/8+4

Front track(mm)

1506,1585

Type of fuel

Diesel

Rear track(mm)

1442,1530

Emission standard

Euro II

Transmission

5 Forward, 1 reverse gears

Engine information

Engine model

D28D10-3D3

Engine Manufacturer

Dongfeng light engine co., LTD

Displacement(ml)/ Power(KW)

2771/75

Max Torque

220 N.m

Speed at Max Torque

2600 rpm

Mobile LED truck specification

LED screen size

(length x high)(mm)

3840 x 1760    (Left or Right side)

Led side screen area (㎡)

6.8

Screen Lift Height(m)

1.5 (Left or Right side)

LED screen’s pixel pitch(mm)

6

Rear screen size(length ×Width)(mm)

1280×1440

Generator

OUMA8CY (8KW)

Remark

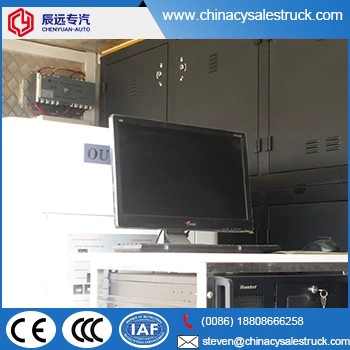

There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. According to customers' requirements, it can be equipped the LED screen lifting system and hydraulic extenstion stage, which will be a multi-purpose truck.
























1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
