Small water transport truck capacity 6000L water tanker
- 1.Production name: Tank water truck
- 2.Production model: CSC5071GSS3
- 3.Overall dimensions(mm): 5995×2050×2450
- 5.Wheel base(mm): 3300
- 6.Fuel Type: Diesel
- 7.Emission standard: Euro III
- 8.Engine model: YC4F115-30 Or CY4102-C3F

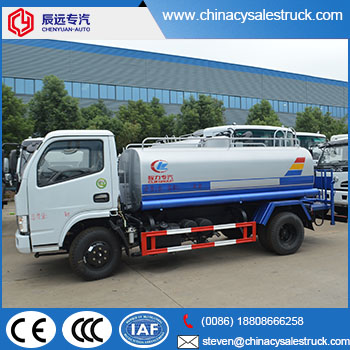

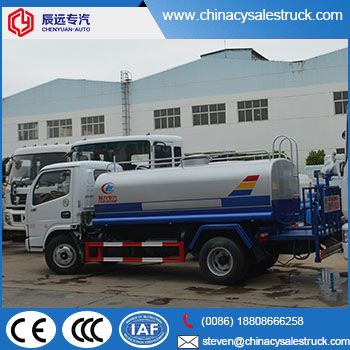

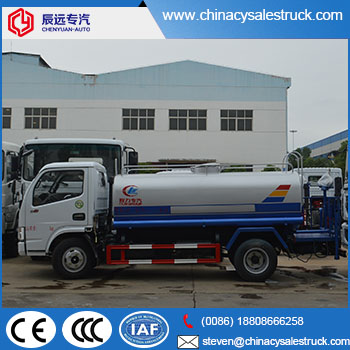

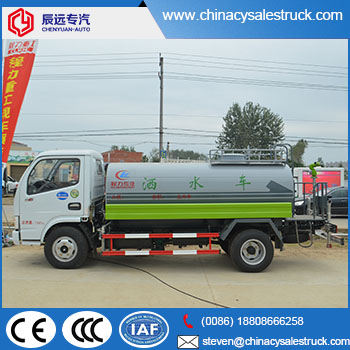

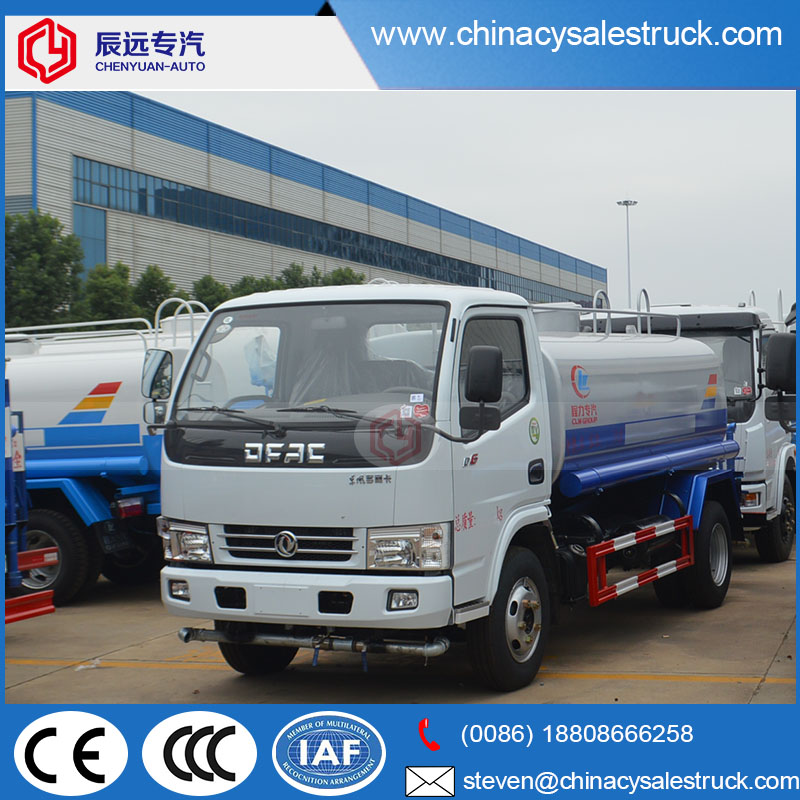

Small water transport truck capacity 6000L water tanker
Main specification |
||||||||||
Product model and name |
CSC5071GSS3 water truck (Left hand drive) |
|||||||||
Gross weight(Kg) |
7495 |
Drive type |
4X2 |
|||||||
Payload(Kg) |
3500 |
Overall dimension(mm) |
5995×2050×2450 |
|||||||
Curb weight(Kg) |
3800 |
Cab seats |
3 |
|||||||
Approach/departure angle(°) |
19/15 |
Front/rear hang(mm) |
1115/1580 |
|||||||
Axle No. |
2 |
Wheelbase(mm) |
3300 |
|||||||
Axle load(Kg) |
2925/4570 |
Max speed(Km/h) |
95 |
|||||||
Chassis specification |
||||||||||
Chassis model |
EQ1070T35DJ3AC |
Manufacturer |
Dongfeng Motor Co., Ltd |
|||||||
Brand name |
Dongfeng |
Dimension(mm) |
5895×2045×2210 |
|||||||
Tyre specification |
7.00-16 |
Tyre No. |
6 |
|||||||
Steel spring number |
8/9+5 |
Front track base(mm) |
1586 |
|||||||
Fuel type |
Diesel |
Rear track base(mm) |
1530 |
|||||||
Emission standard |
Euro 3 |
Transmission |
5 forward gear,1 reverse gear |
|||||||
Cab |
Single row,luxurious interior trim with seats.And power steering with optional air condition. |
|||||||||
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
|||||||
YC4F115-30 |
Guangxi Yuchai Machinery Co.,Ltd |
2659 |
85 |
|||||||
Performance |
||||||||||
Tank volume(m³) |
5 (5000liter) |
Tank material |
Carbon steel Q235 |
|||||||
Water pump model |
65QZ40/45 |
Water pump flow(m³/h) |
40 |
|||||||
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
|||||||
Feature and Application |
||||||||||
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. |
||||||||||
