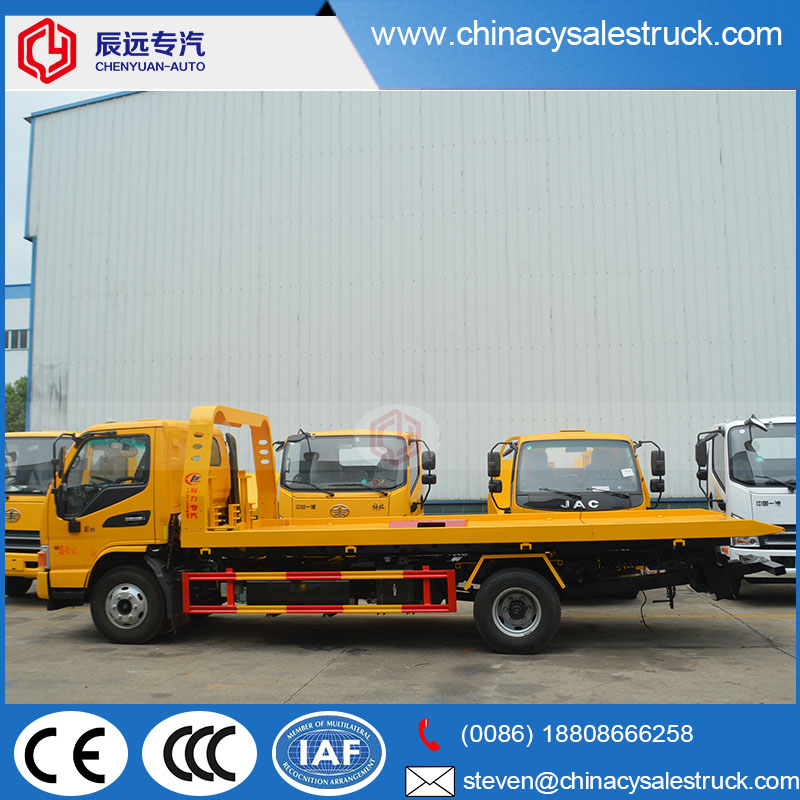

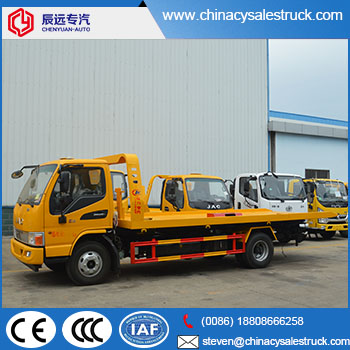

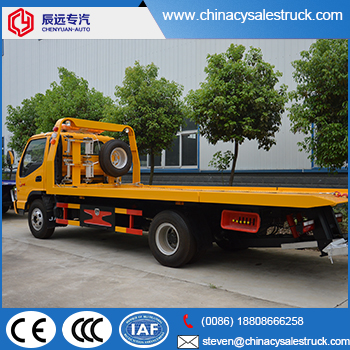

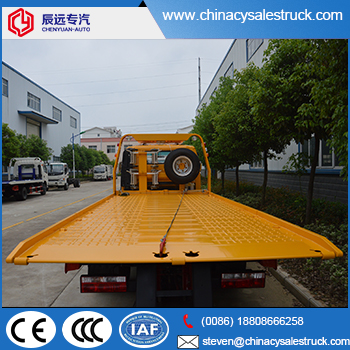

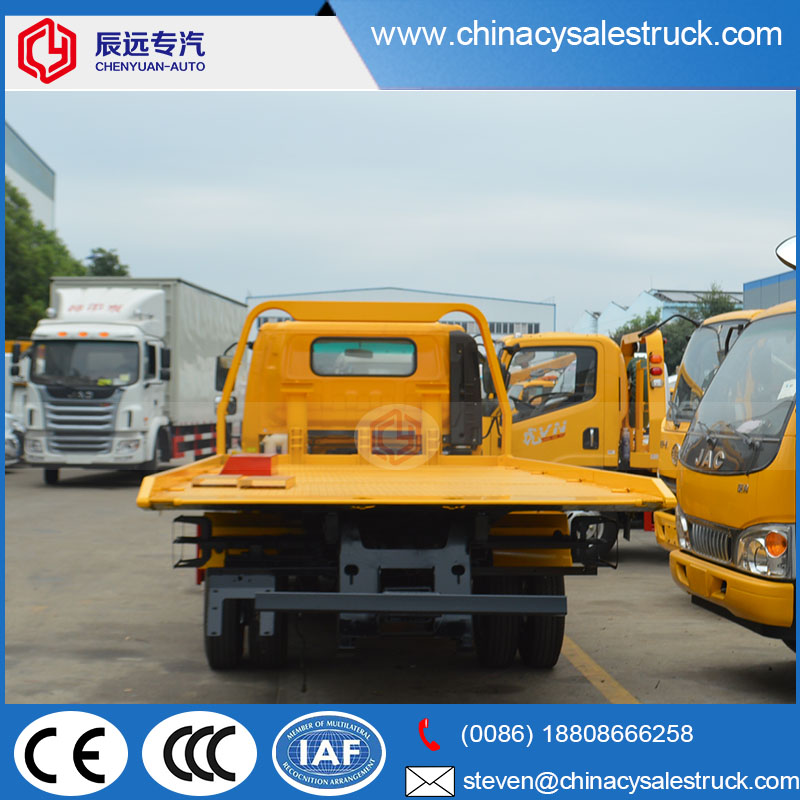

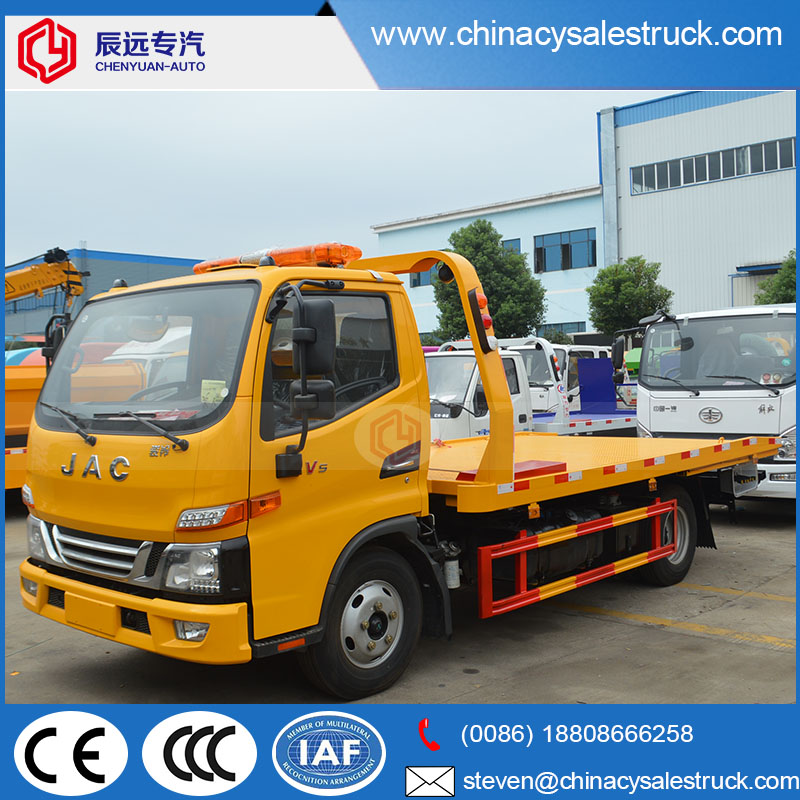

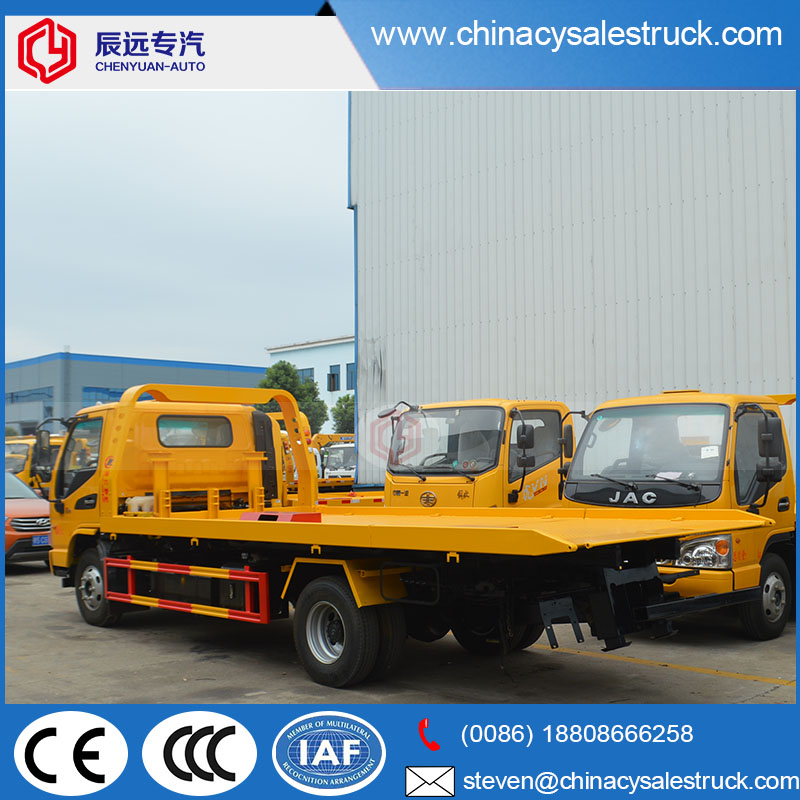

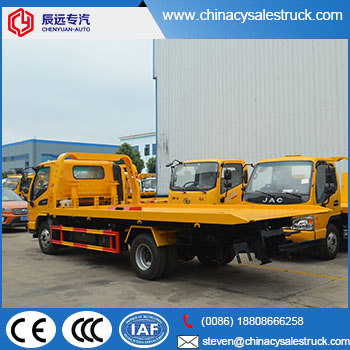

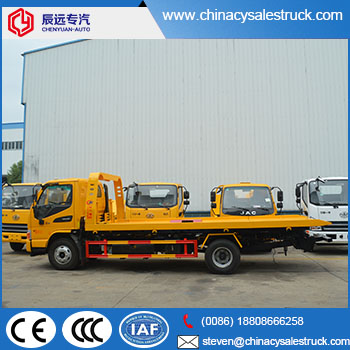

JAC 6 tons Wrecker truck supplier in china

  • 1.Production name: JAC wrecker truck
  • 2.Production model: CSC5084TQZJHP
  • 3.Overall dimensions(mm):7370X2300X2300
  • 5.Wheel base(mm): 3360
  • 6.Fuel Type: Diesel
  • 7.Emission standard: Euro III
  • 8.Engine model: CY4102-CE4C

JAC 6 tons Wrecker truck supplier in china











Main specification

Product model and name

CSC5084TQZJHP small right hand road wrecker tow trucks winder for sale

Gross weight(Kg)

8280

Drive type

4X2

Curb weight(Kg)

4850

Overall dimension(mm)

7370X2300X2300

Approach/departure angle(°)

24/10

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1085/2470

Axle load(Kg)

2980/5300

Wheelbase(mm)

3815

Max speed(Km/h)

95





Chassis specification

Chassis model

HFC1081P91K2C5

Manufacturer

Anhui JAC Motor Co.,Ltd

Brand name

JAC

Dimension(mm)

6810X1995X2216

Tyre specification

7.50R16 14PR

Tyre No.

6

Steel spring number

9/12

Front track base(mm)

1665

Fuel type

Diesel

Rear track base(mm)

1525

Emission standard

Euro 4

Transmission

5 forward gear,1 reverse gear(manual)

Cab

Single row,luxurious interior trim with seats,can be tippable forwardly with power steering, Air condition is optional.

Engine information

Engine model

CY4102-CE4C

Engine manufacturer

Dongfeng Chaoyang Diesel Co.,Ltd

Displacement(ml)/ Power(Kw)

3856/91(125HP)

Max Torque

345 N.m

Speed at Max Torque

2800rpm

Performance

Flat length(mm)

5600

Flat width(mm)

2300

Max pulling weight(Kg)

4000

Max lift weight(Kg)

3000

Vehicle accessories

Training wheels, Steel wire rope, Bandage, Alarm lamp, Tyre covers, Jack, Spare tyre, Drivers’ tools

Wrecker Truck Instruction

The full name of wrecker truck is named road wrecker truck, also called trailer and road rescue truck. It has the powerful function and can carry two cars at the same time. It is the ideal choice for road management department and automobile repair plat to proceed to the road repair and rescue.





















1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
