ISUZU brand 5.5cbm garbage vehicle for sale
- 1.Production name: garbage vehicle for sale
- 2.Production model: HCQ5072TSLQL
- 3.Overall dimensions(mm): 6190x1990x2590
- 4.Wheelbase(mm): 3360
- 5.Chassis model: QL1070A1HAY
- 6.Material of trash tank:Stainless steel/4 m3
- 7.Material of water tank:Stainless steel/1.5 m3
- 8.Emission standard: Euro V
- 9.Max sweeping width(mm):3200
- 10.Sweeping speed (km / h):3-20
- 11.Sweeping capacity(㎡/h):9000- 60000
- 13.Maximum Grain size and quality (mm):100mm\±1.5kg

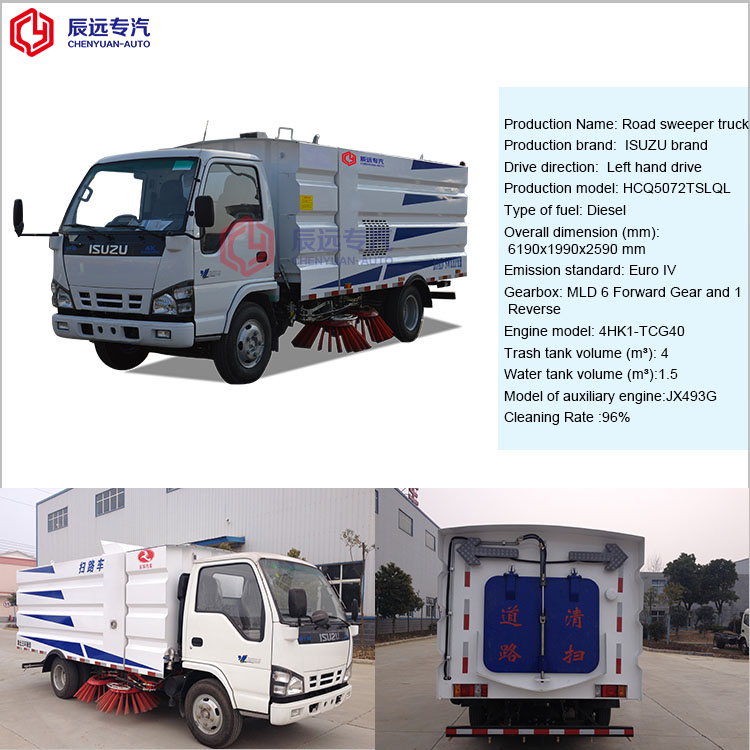

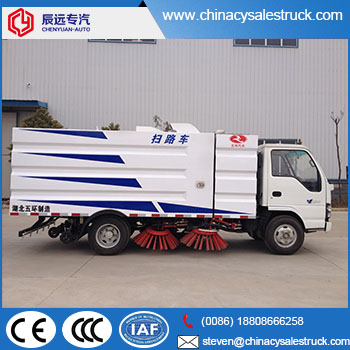

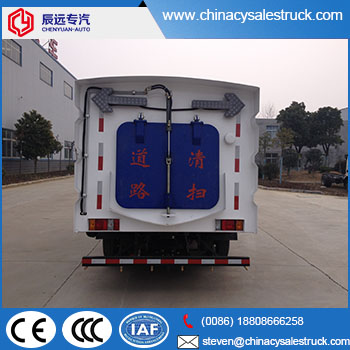

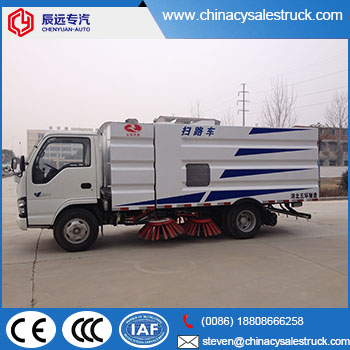

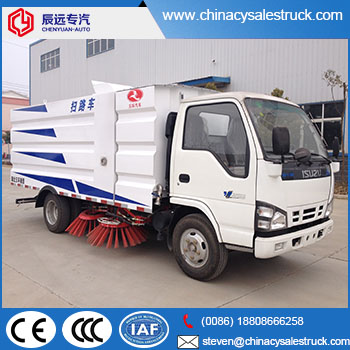

ISUZU brand 5.5cbm road sweeper vehicle for sale
Main specifications |
|||
Product model、name |
HCQ5072TSLQL Road Sweeper Truck |
||
Gross weight(Kg) |
7300 |
Drive type |
4 X 2 |
Payload (Kg) |
2150 |
Overall dimension (mm) |
6190x1990x2590 |
Curb weight(Kg) |
5020 |
cab seats (man) |
2 |
Number of axles |
2 |
Wheelbase(mm) |
3360 |
Axle load |
2580/4720 |
Max speed(Km/h) |
105 |
Chassis specifications |
|||
Chassis model |
QL1070A1HAY |
Manufacturer |
ChongQing ISUZU Motors Co., Ltd. |
Brand name |
ISUZU |
Overall dimension(mm) |
5900×1880×2160 |
Tire specification |
7.00-16 |
Tires No. |
6 |
Steel spring number |
8/6+5 |
Front track(mm) |
1504 |
Fuel type |
Diesel |
Rear track(mm) |
1425 |
Emission standard |
Euro IV |
Transmission |
5 Forward Gear |
Cabin |
Luxury interior and Instrument bar, with air conditioning. |
||
Main engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
4KH1-TCG40 |
ChongQing ISUZU Motors Co., Ltd. |
2999 |
88 |
Road Sweeper Performance |
|||
Trash tank volume (m³) |
4 |
Water tank volume (m³) |
1.5 |
Material of trash tank |
Stainless steel |
Material of water tank |
Stainless steel |
Model of auxiliary engine |
JX493G |
Power of auxiliary engine(Kw) |
57KW |
Manufacturers of auxiliary engine |
Jiangxi Isuzu Engine Co., Ltd. |
Max sweeping width(mm) |
3200 |
Sweeping speed (km / h) |
3-20 |
Sweeping capacity(㎡/h) |
9000- 60000 |
Maximum Grain size and quality (mm) |
100mm\±1.5kg |
Cleaning Rate |
96% |
|
