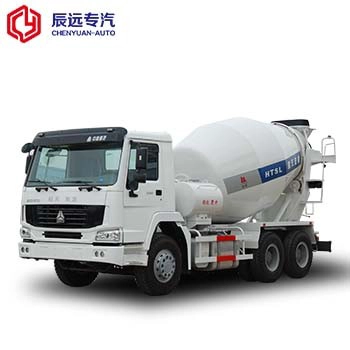

HOWO brand 12 cubic meter concrete mixer truck,mixer truck manufactures in china

HOWO brand 12 cubic meter concrete mixer truck,mixer truck manufactures in china

  • 1.Production name: Concrete mixer truck
  • 2.Production model: ZZ5251GJBN3841C
  • 3.Overall dimensions(mm): 8935×2490×3875
  • 5.Wheel base(mm): 4200+1350
  • 6.Fuel Type: Diesel
  • 7.Emission standard: Euro III
  • 8.Engine model: WD615.95E

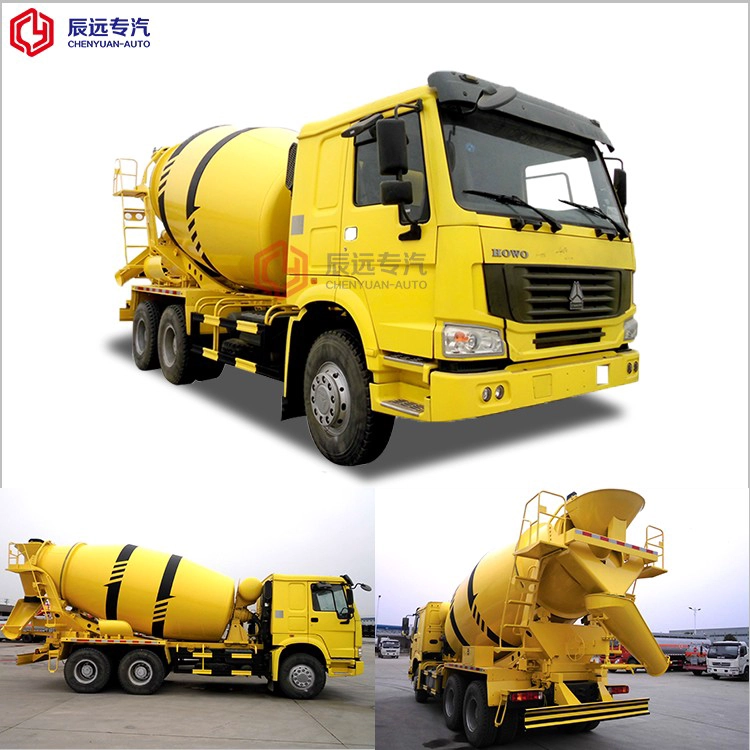

HOWO brand 12 cubic meter concrete mixer truck,mixer truck manufactures in china




【 Main Technical Parameters 】

Production name

ZZ5251GJBN3841C Concrete mixer truck

GVW(kg)

25000

Drive type

6x4

Curb weight (kg)

11980

Overall demension(mm)

8935×2490×3875

Curb weight(Kg)

12890

Cab seats(man)

2

Approach / departure angle(°)

20.5/22

F/R overhang(mm)

1320/2515

Number of axles

3

Wheel base(mm)

4200+1350

Axle-load(Kg)

7000/18000

Max speed(Km/h)

74

【 Chassis Technical Parameters 】

Chassis model

ZZ1251N3841C

Brand

Star - Steyr

Manufacturer

China Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd.

Tire specification

12.00R20

Overall dimension(mm)

7820×2490×3070

Steel spring number

12/12,10/12

Tires No.

10

 Fuel type  Diesel  Front track(mm)  2047
 Emission standard  Euro III  Rear track(mm)  1850

Gearbox

10 forward gear

Emission standard

Euro III

Gearbox

10 forward gear

Cab

Luxury interior and Instrument bar, with air conditioning and sleeper.

Engine’s Technical Parameters

Engine model: WD615.95E  (Displacement(ml):9726/247)

Engine Manufacturer

hina National Heavy Duty Truck G roup Co., Ltd.

Rated speed

2200rpm

Maximum torque

1350N.m

Maximum torque speed

1100-1600rpm

 Concrete mixer truck performance  Tank volume(m3 10
 Material of tank Q345
 Pump/Motor/Reducer Import
 Water tank volume(L) 350L
 The supplied water method Pneumatic
 Concrete mixer truck features
  This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the   concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.




















1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
