Main specification

Product model and name

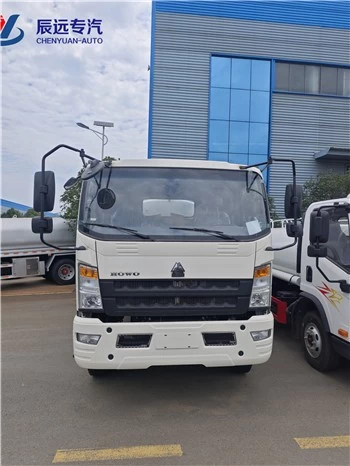

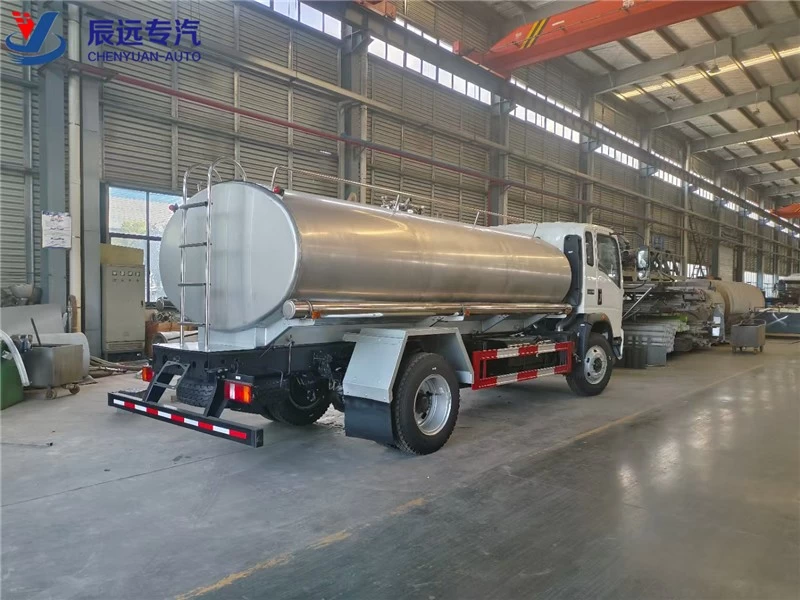

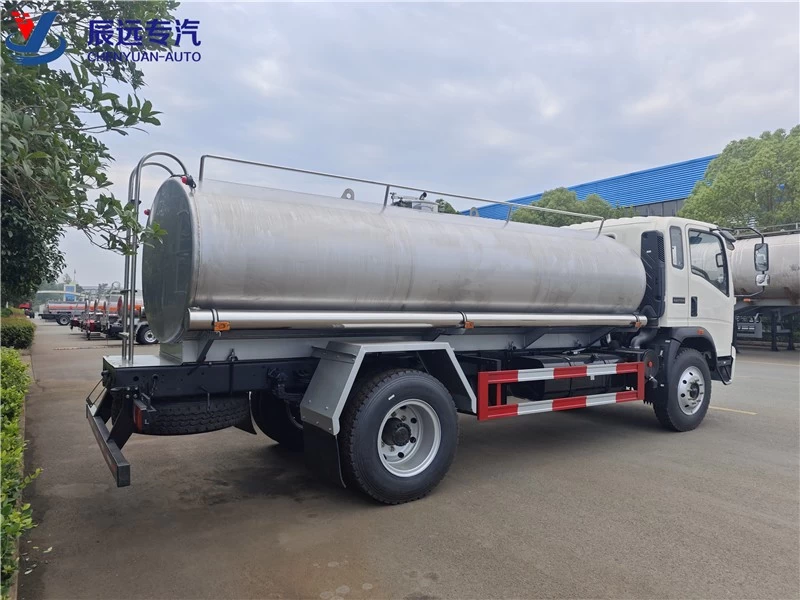

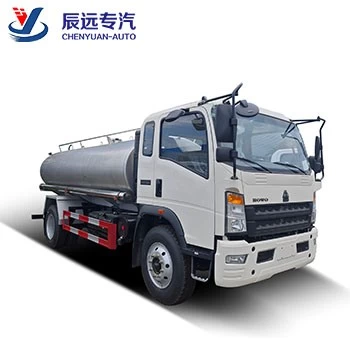

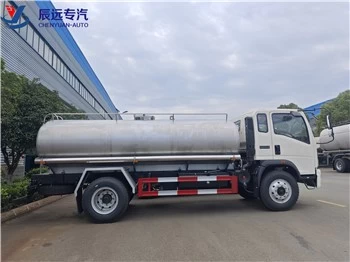

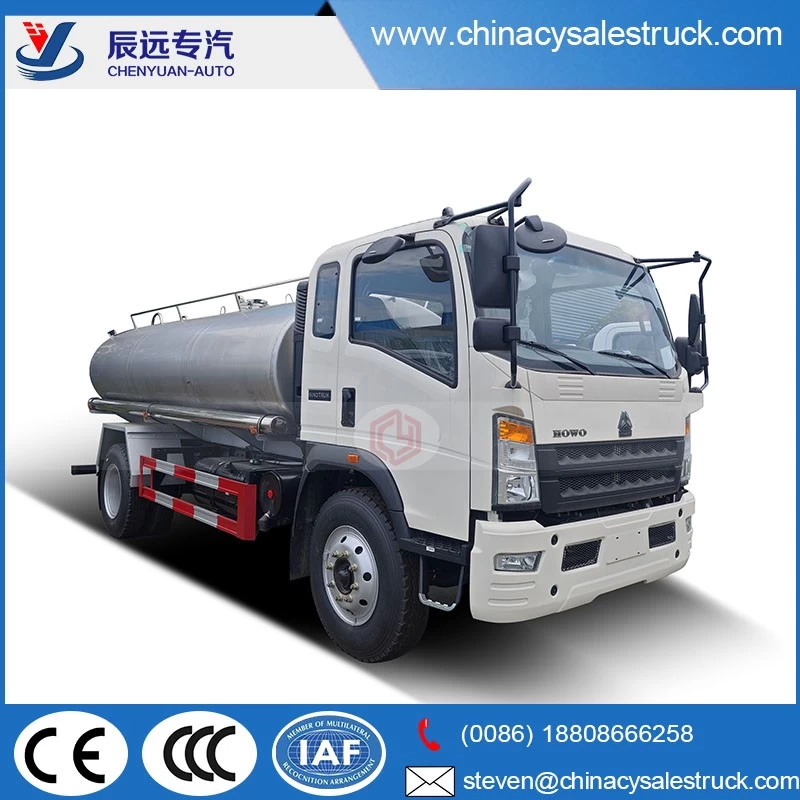

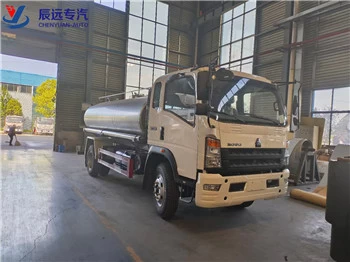

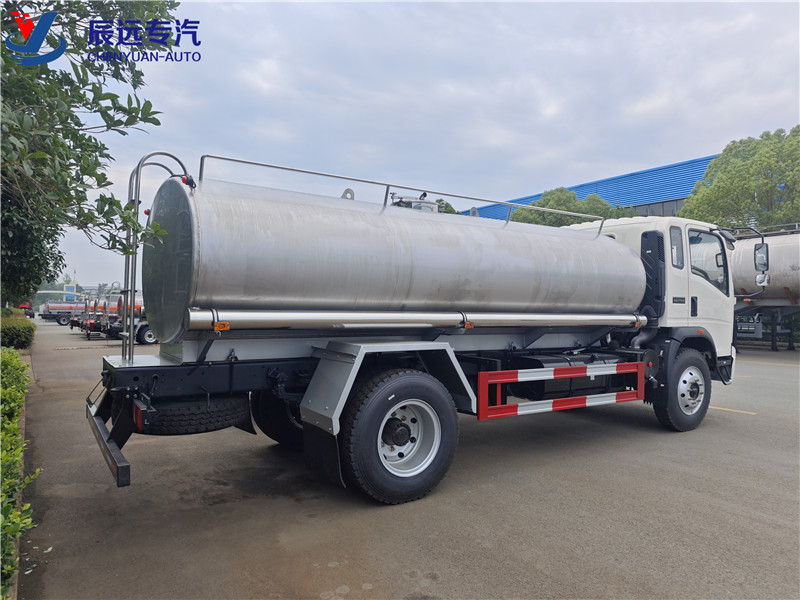

HCQ5161GPS  water truck

Gross weight(Kg)

16000

Drive type

4X2

Payload(Kg)

9200

Overall dimension(mm)

8600,8350X2490X3100

Curb weight(Kg)

6605

Cab seats

3

Approach/departure angle(°)

18/13,18/16

Front/rear hang(mm)

1430/2470,1430/2220

Axle No.

2

Wheelbase(mm)

4500

Axle load(Kg)

6000/10000

Max speed(Km/h)

90

Chassis specification

Chassis model

Manufacturer

Brand name

HOWO

Dimension(mm)

8790,8290X2370X2760,2840

Tyre specification

10.00R20

Tyre No.

6

Steel spring number

7/9+6,8/10+8

Front track base(mm)

1880,1920,1940

Fuel type

Diesel

Rear track base(mm)

1800,1860

Emission standard

Euro 3

Transmission

6 forward gear,1 reverse gear

Cab

D530 flat.One and half row flat cab, electric window regulator,

central control door lock and PXD-B dashboard with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

5900

140

Performance

Tank volume(m³)

10

Tank material

#304 Stainless steel

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

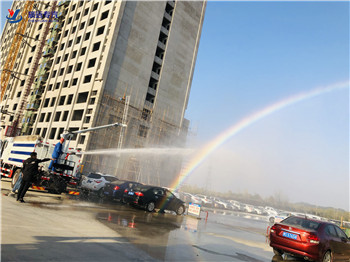

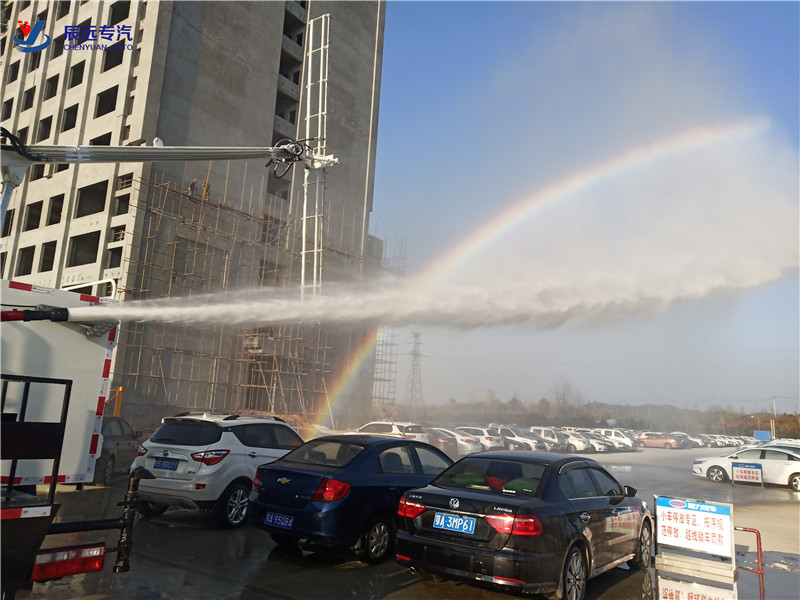

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
