Main specifications

Product model、name

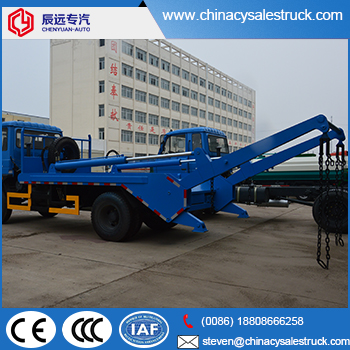

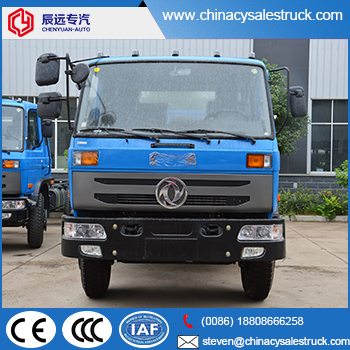

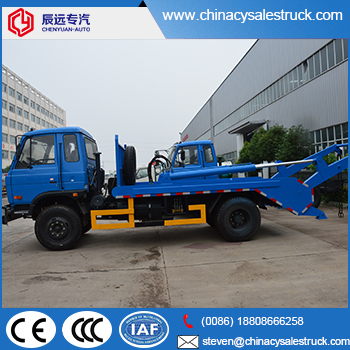

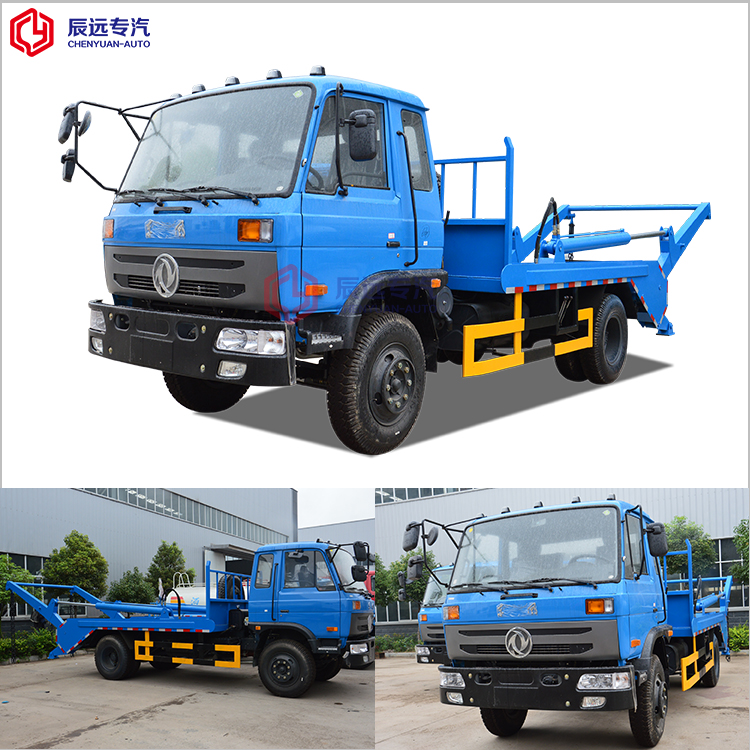

CLW5100ZXXT Garbage Truck With Removable Box

Gross weight(Kg)

9895

Driving type

4×2

Payload (Kg)

4000

Overall dimension (mm)

6500×2500×2710

Curb weight(Kg)

5700

cab seats (man)

3

Approach/departure angle (°)

33/28

Front/rear hang(mm)

1250/1300

Axle No.

2

Wheelbase (mm)

3950

Axle load(Kg)

3460/6435

Max speed(Km/h)

90

Chassis specifications

Chassis model

EQ1110GLJ

Manufacture

Dongfeng Automobile Company

Brand name

Dongfeng

Overall dimension (mm)

7120×2462×2710

Tire specification

9.00-20

Tires No.

6+1

Steel spring number

8/11+8

Front track(mm)

1900

Fuel type

Diesel

Rear track(mm)

1800

Emission standard

Euro III

Gear box

6 forward

Engine information

Engine model

B170 33

Engine manufacture

Dongfeng cummins engine co.,ltd

displacement(ml)/ Power(Kw)

5900/125

Speed at Max Torque

2500rpm

Max Torque

560N.m

Performance

Body capacity（m³）

10

Box body material

Q235 carbon steel

Discharge Method

Rear dump

Operation control system

Manuel + electric

Characteristic

1、Detachable Container Garbage Truck also called pull arm garbage truck ；

2、Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab；

3、The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly；

4、The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency。

1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
