Vehicles parameters

Dimensions

product model:

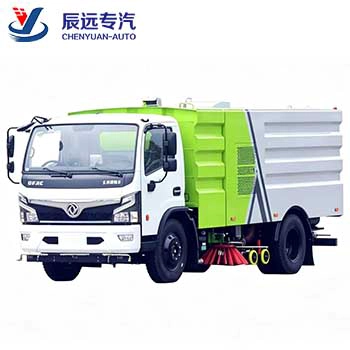

hcq5081tsldfa   road sweeper truck

overall dimensions(mm)

7160×2200×2750

gvw(kg)

8275

payload (kg)

2100

curb weight(kg)

5980

wheelbase/mm

3800

approach/departure angle/°

24/12

front/rear overhang/mm

1210/2150

Cab

cab capacity

single row, left steering wheel

air conditioner

no

Chassis Information

chassis model

dfa1080sj12d3

brand

dongfeng brand dlk series

driven mode

4x2, lhd

emission standard

euro iv

front/ rear  track base(mm)

1770/1586

tyre

7.50r16

fuel type

diesel

steel spring number

8/10+7,11/9+7

cabin

car interiors, with the direction of power and usb interface, cassette player, with air conditioning,

max speed/ km/h

95

engine

engine model

cy4102-ce4c

horsepower/hp

124

displacement/ml

3856

max torque

345 n.m

speed at max torque

2800 rpm

Road sweeper performance

trash tank volume (m³)

5

water tank volume (m³)

2

material of trash tank

stainless steel

material of water tank

stainless steel

model of auxiliary engine

jx493g

power of auxiliary engine(kw)

57

max sweeping width(mm)

3200

sweeping speed (km / h)

3-20

sweeping capacity（㎡/h）

9000- 60000

maximum grain size and quality (mm)

100mm\±1.5kg

cleaning rate

96%
