Auman 12cbm portable water truck supplier in chinaAuman 12cbm portable water truck supplier in chinaAuman 12cbm portable water truck supplier in chinaAuman 12cbm portable water truck supplier in chinaAuman 12cbm portable water truck supplier in china

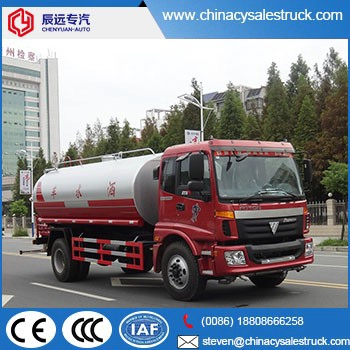

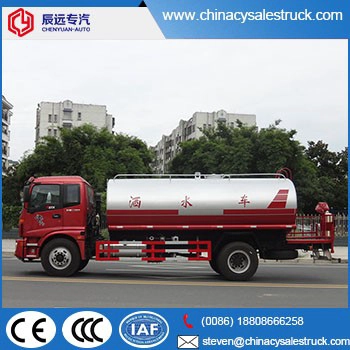

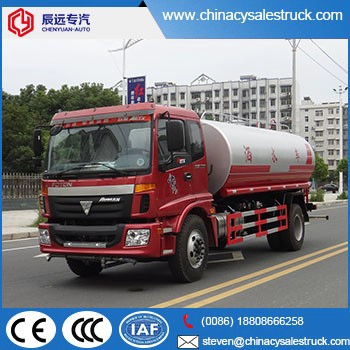

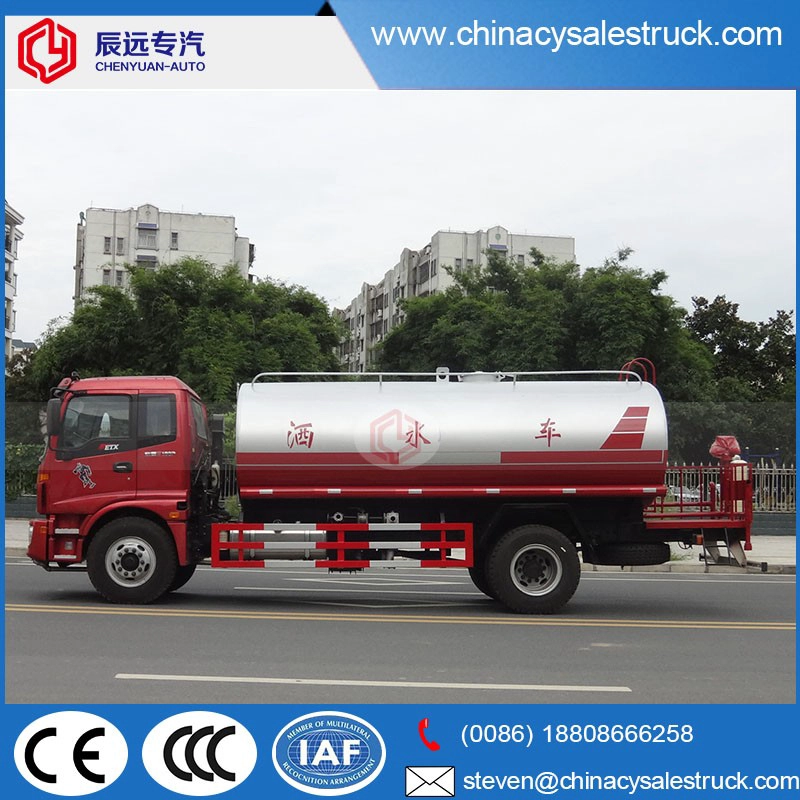

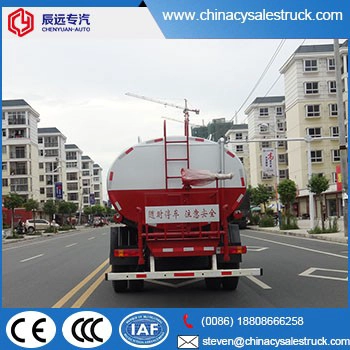

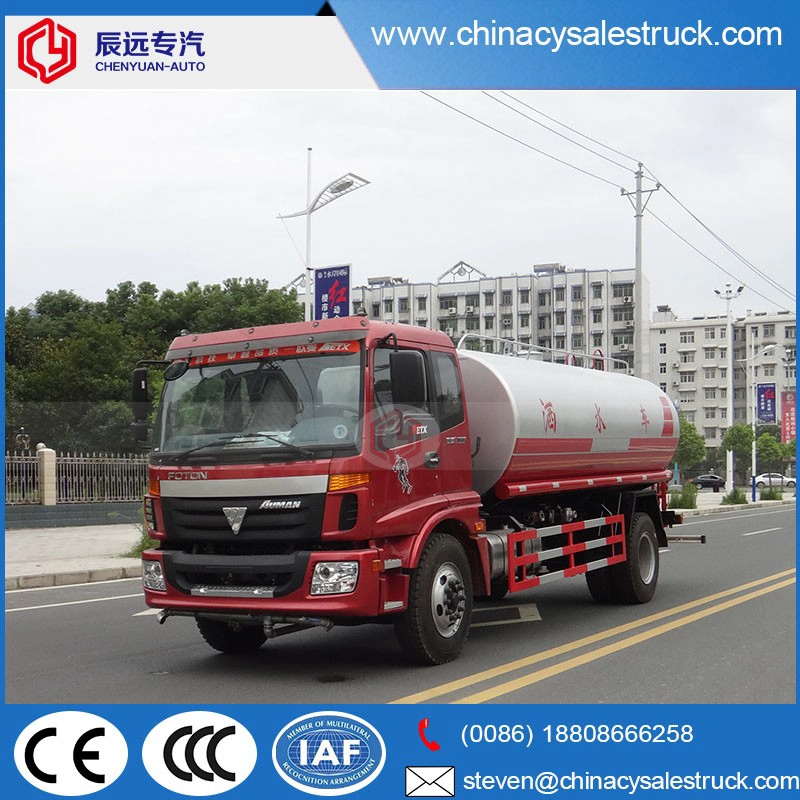

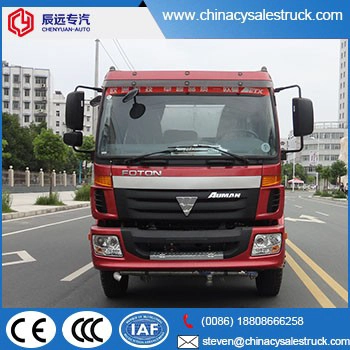

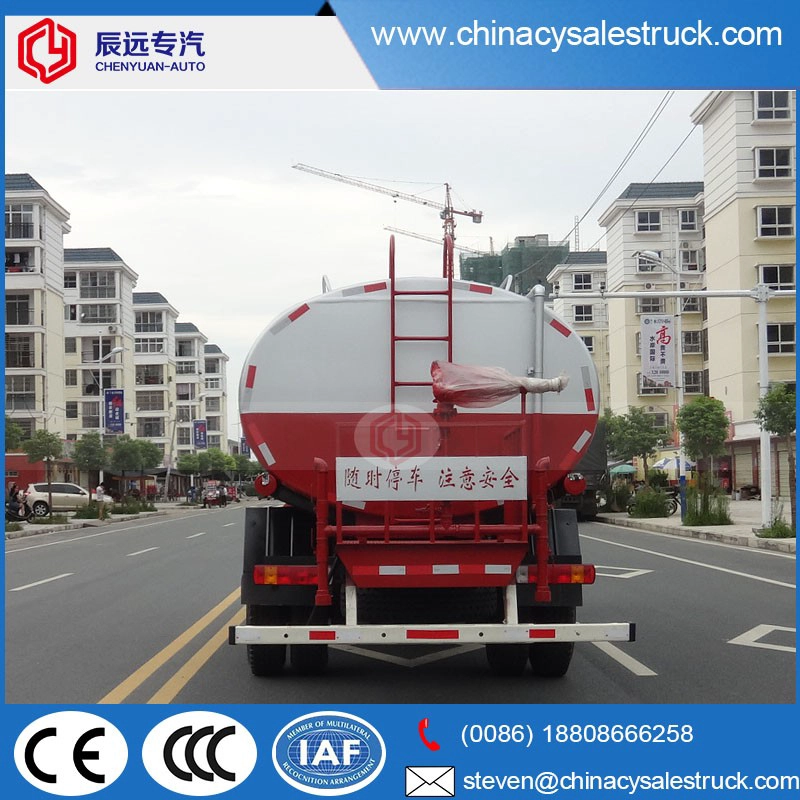

Auman 12cbm portable water truck supplier in china

  • 1.Production name: Tank water truck
  • 2.Production model: CLW5163ELFFA
  • 3.Overall dimensions(mm): 7800×2420×3100
  • 4.Wheel base(mm): 4000
  • 5.Fuel Type: Diesel
  • 6.Emission standard: Euro III
  • 7.Engine model: ISDe185 30
  • 8.Tank Volume(m3):520 m3
  • 9.Transmission:8 forward gear,1 reverse gear

Auman 12cbm portable water truck supplier in china










Technique parameter

Name

Auman single axle sprinkler truck

L×W×H mm

7800×2420×3100(mm)

Chassis Model

BJ5163ELFFA

Cargo body   Dimension(mm)

××(mm)

total mass

15800(Kg)

Approach/Departure angle

16/8(°)

Rated mass

9550(Kg)

front/rear suspension

1365/2435(mm)

curb mass

6055(Kg)

Max. speed

85(km/h)

Engine

manufacturer

displacement(ml)

power(kw)


ISDe185 30

Dongfeng Cummins Engine Co., Ltd.

6700

136

Emission standards

GB17691-2005Euro3,GB3847-2005

Axle

2

front tread

1900/1800(mm)

wheelbase

4000

rear tread

1800(mm)

tyre

6

tyre size

9.00-20,9.00R20,10.00-20,10.00R20

fuel type

diesel

spring

10/10+8

axle load

5900/9900

cab passenger

3

Note

Tank capacity:10.0 m³;Tank dimension (length×long axle ×short axle):4400/2200/1400.



Special

performance



Our company specializes in producing Dongfeng Xiaobawang sprinkler truck, Dongfeng Duolika sprinkler truck, Dongfeng Sanpingchai sprinkler truck, Dongfeng Dajingang sprinkler truck, Dongfeng 140 sprinkler truck, Dongfeng 145 sprinkler truck, Dongfeng 153 sprinkler truck, Dongfeng 1254 sprinkler truck, Dongfeng 8*4 sprinkler truck, Dongfeng Tianlong sprinkler truck, and Jiefang series sprinkler truck etc. We may modify sprinkler truck with the chassis that customer’s brought themselves.

The sprinkler truck has front spray, rear sprinkling and side spray. There is a working platform behind the tank, on which a spry monitor is mounted. The monitor can rotate 360°,and it can spray as washdown, heavy rain, light rain and fine rain continuously. The truck is equipped with special high power spray pump produced by Hangzhou Weilong, which is top 1 in China. The pump has capacity of self-suction and self exhaust, which is equipped with strainer and fire coupling. The pump has gravity valve, and water can inflow through fire hydrant. 20m reel is optional. The truck also can spray pesticide.

Spray pump: special high power spray pump, which has mature quality, reasonable design, easy to use. It has the advantage of high pressure, long suction and long work life, which leads the spray pump area home & abroad and has a market share of 93%.
























1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
