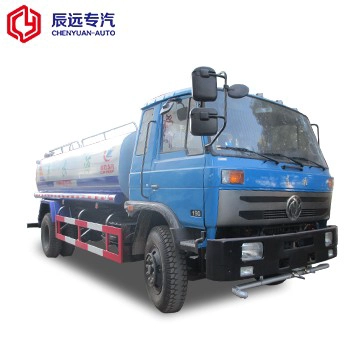

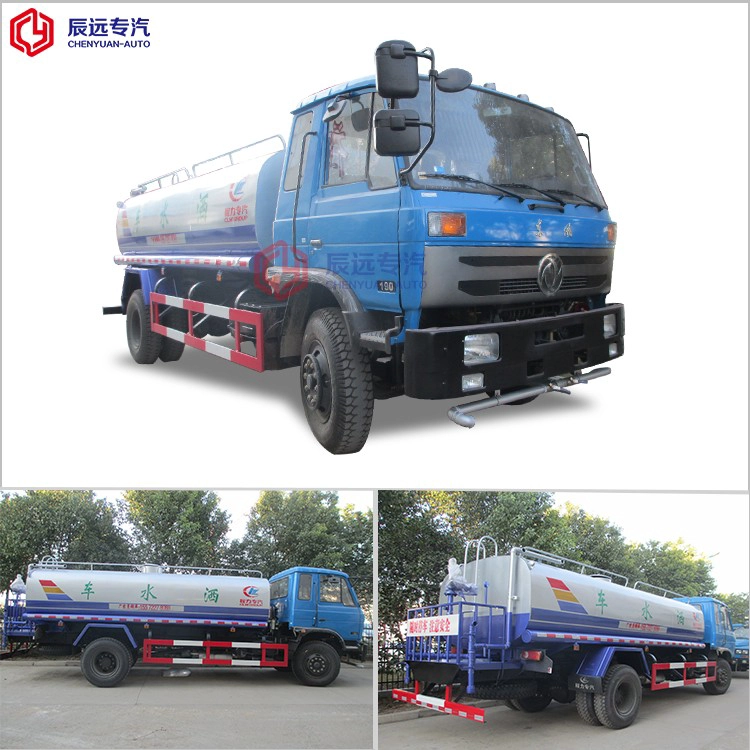

10-12 cbm  water tank truck supplier

10-12 cbm water tank truck supplier

  • 1.Production name: Tank water truck
  • 2.Production model: CLW5160GSST4
  • 3.Overall dimensions(mm): 8400 x2490 x 2950
  • 5.Wheel base(mm): 4500
  • 6.Fuel Type: Diesel
  • 7.Emission standard: Euro III
  • 8.Engine model: ISDe185 40 or ISB210

10-12 cbm  water tank truck supplier





main specification

product model and name

clw5111gsst3 water truck

gross weight(kg)

11495

drive type

4×2

payload(kg)

4500

overall dimension(mm)

7500x2470x3050

curb weight(kg)

6800

cab seats

3

approach/departure angle(°)

27/13

front/rear hang(mm)

1250/2300

axle no.

2

wheelbase(mm)

3950

axle load(kg)

3750/7745

max speed(km/h)

85

chassis specification

chassis model

eq1110glj

manufacturer

dongfeng motor co.,ltd

brand name

dongfeng

dimension(mm)

7120x2462x2710

tyre specification

9.00-20

tyre no.

6

steel spring number

8/11+8

front track base(mm)

1900,1810

fuel type

diesel

rear track base(mm)

1800

emission standard

euro 3

transmission

6 forward gear,1 reverse gear(air brake)

cab

luxurious interior trim with seats.power steering with sleeper.air condition is optional

engine information

engine model

b170 33

engine manufacturer

dongfeng cummins engine co.,ltd

displacement(ml)/ power(kw)

5900/125



max torque

560n.m



speed at max torque

2500rpm



performance

tank volume(m³)

10(10000liters)

tank material

carbon steel q235

water pump model

80qzf-60/90n

water pump flow(m³/h)

60

watering width(m)

≥14

water cannon range (m)

≥28

feature and application

1).equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).the water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. there are straight shape, heavy rain, moderate rain and drizzle etc. the max range can reach 30m.

4).equipped with fire coupling, flow valves, filter screen and water level gauge.

5).according to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. and also used for drinking water delivery and fire fighting function etc.




















1. Q: How long is the warranty period?

   A: All of our trucks have one year warranty or 25000KM since you get the truck.

 2. Q: What’s the main market of yourcompany?

   A: We have customers all over the worldand our main market it Afrian, all the individuals and units are my partnerswho have a demand of china’s high quality automobile industry product.

3.  Q: How much the production capacity and supply capacity of your factory for one year?

 .  A: This depends on your needs. 10 years of spare parts sales experience makes us have a smooth supply channels.

4.  Q: Where is your factory located?

   A:Our company is located in Suizhou City,Hubei Province,the Capital of Special Purpose Vehicle in China.Warmly welcome to our factory.

5.  Q: The reason why you chose our company?

   A: We have the abundant resources supply, professional quality inspection engineers,excellent service team, we will integrate all resources for your needs, let you experience the more cost-effective and more convenient "one-stop" procurement services, effectively reduce the purchasing cost.
